Vimar ARKÉ Series Australian SICURY Socket Outlet, 2P+E, 15A 250V, 2 Modules

Overview

The Vimar ARKÉ Series is a 2P+E 15 A Australian SICURY socket outlet range for AC shore-power style outlet points in protected interior spaces. Each outlet is rated for 15 A at 250 V~ and uses a 2-module ARKÉ format, making it a fit for installations where the vessel, panel layout, or interior electrical plan calls for an Australian standard outlet.

This is a flush-mounted wiring device with screwed terminals, a thermoplastic body, and a matt finish. The 44.70 x 49.00 x 38.90 mm device size helps when checking space inside an existing box, cabinet, berth-side panel, galley fascia, or saloon outlet position before ordering.

For marine use, it belongs in dry, protected areas rather than exposed deck locations or washdown zones. It suits fixed interior AC outlet points on yachts, cruisers, and marine accommodation spaces where the outlet format and finish need to match the rest of the Vimar ARKÉ installation.

Key features

• 2P+E Australian standard socket outlet rated at 15 A and 250 V~ for compatible AC electrical installations.
• 2-module ARKÉ format for use with matching Vimar ARKÉ plates, frames, and interior wiring layouts.
• SICURY version with enhanced contact protection for outlet points used by crew, guests, or passengers.
• Flush-mounted body with screwed terminals for fixed installation in panels, furniture, and protected cabin areas.
• Thermoplastic construction with halogen-free material for interior electrical fit-outs.
• Matt finish options let the outlet match light, dark, or metallic-look ARKÉ switchgear on board.
• Device dimensions of 44.70 mm wide, 49.00 mm high, and 38.90 mm deep help confirm fit before installation.
• 50/60 Hz frequency rating supports common AC system specifications used in marine and shore-power environments.

Variants

This Vimar ARKÉ socket outlet is offered in multiple finish configurations. The electrical format, 2-module size, flush-mounted installation style, screwed terminal connection, 15 A rating, and 250 V~ rating remain consistent across the range.

The main difference between variants is the visible finish, which affects how the outlet blends with the surrounding plate, cabinetry, and interior color scheme.

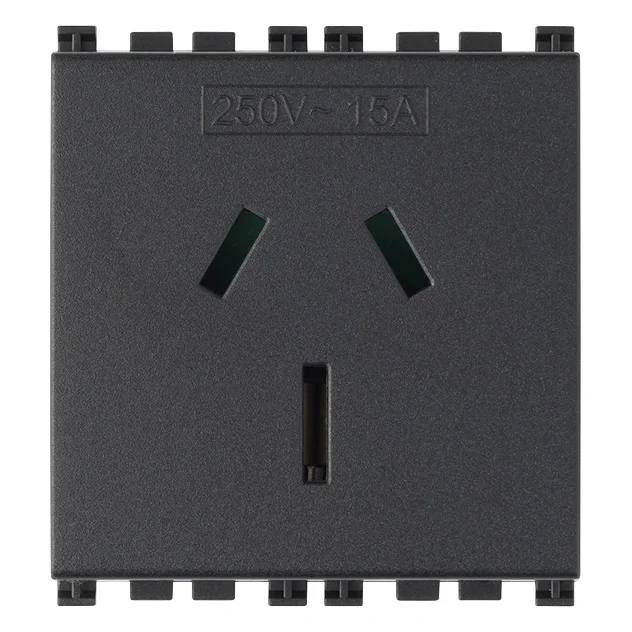

• VM19262, gray finish. This option suits darker ARKÉ layouts and interior panels where a neutral gray outlet is preferred.
• VM19262.B, white finish. This option works well with white ARKÉ trim and light-colored cabin, galley, or berth-side surfaces.

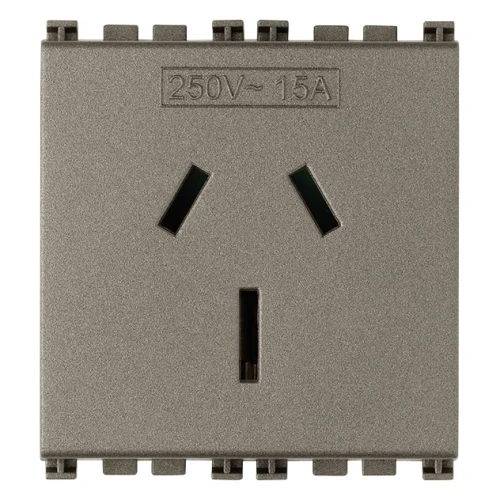

• VM19262.M, metal finish. This option gives the outlet an aluminium-look appearance for installations that use metallic-look switchgear or more technical interior styling.

Installation and fit

This outlet is intended for flush-mounted installation as part of a fixed electrical system. The 2-module format is important to confirm before purchase, especially when replacing an existing device or matching a new outlet to an ARKÉ support frame and cover plate.

Because this is an AC wiring device, installation should be handled by a qualified marine electrician or electrical professional familiar with the vessel voltage, grounding, circuit protection, and local electrical rules. It should be used only where the Australian outlet format and 15 A, 250 V~ rating match the intended circuit.

Use on board

This outlet is a practical match for protected interior power points in cabins, saloons, galleys, navigation areas, and accommodation spaces. It is not the right choice for exposed cockpit, deck, or engine-room locations unless the surrounding installation provides the required environmental protection.

For builders, refit yards, and owners maintaining a consistent Vimar ARKÉ interior, the range makes it easier to keep outlet appearance and module format aligned across multiple areas of the boat.
