Overview

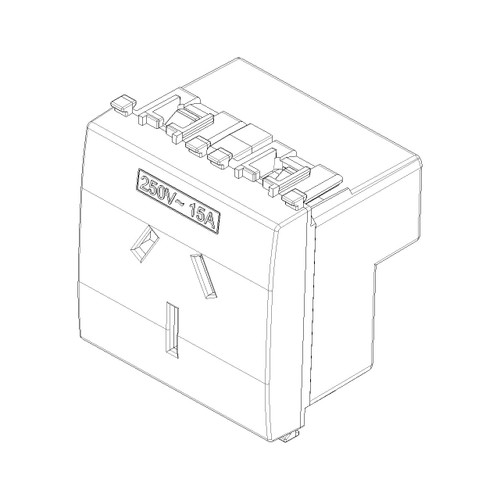

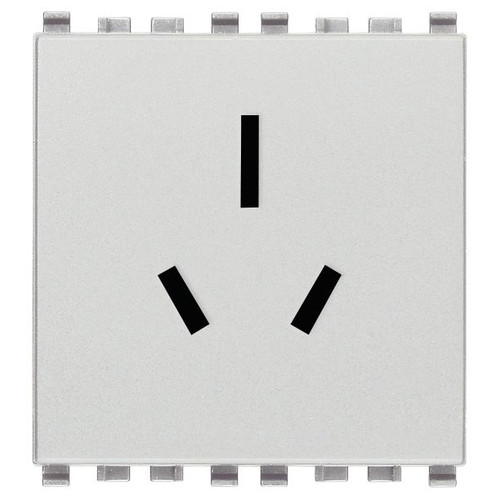

The Vimar Eikon 20262 SICURY Australian Socket Outlet is a flush-mounted 2-module outlet for boats and interiors wired to the Australian AS/NZS 3112 Type I standard, with a 2P+E layout and a 15 A, 250 V rating. It combines screw terminals, enhanced contact protection, label space, and an IP20 body for protected interior installations.

For a marine refit or new build, it fits neatly into cabins, galleys, saloons, and service spaces where an Australian-standard AC receptacle is needed in a compact format. The housing is thermoplastic and halogen-free, and the 38.9 mm depth helps when panel room is limited.

Key features

• Australian standard AS/NZS 3112 Type I socket outlet with 2P+E configuration, rated 15 A at 250 V
• 2-module insert for flush-mounted installation, with overall dimensions of 44.8 x 49 x 38.9 mm
• Screw terminal connection for fixed wiring on onboard AC circuits
• Enhanced contact protection and label space on the outlet face
• Thermoplastic construction, halogen-free body, and matt finish
• IP20 protection for interior locations where the outlet stays protected from spray and washdowns
• RCM marking for Australia

Variants

This outlet is offered in three color configurations, so the electrical format stays the same while the visible finish can match the rest of the panel or cabin interior.

Across the range, it remains a single 2P+E Australian-standard outlet in a 2-module, flush-mounted format, rated at 15 A and 250 V with screw terminals, enhanced contact protection, and IP20 protection. The finish is what changes between variants.

• VM20262.B, Color White. A light finish that blends into white liners, bright cabinetry, and lighter interior panels.
• VM20262.N, Color Silver. A silver finish that suits contemporary switch panels and other trim with a cooler neutral tone.
• VM20262, Color Grey. A darker neutral finish that sits quietly on grey panels and technical interior spaces.

Installation and fit

This is a flush-mounted insert in the Vimar Eikon range, so it suits installations where a clean, built-in outlet is preferred over a surface-mounted fitting. The compact 2-module footprint works well when switch and socket space is tight.

It is a practical match for vessels that already use Australian-standard AC receptacles or are being built around that plug pattern. Because it is an IP20 outlet, it belongs in dry interior spaces on properly protected AC circuits.

Use on board

This outlet makes sense on cruising boats, sportfishing boats, and larger dayboats with shore power or inverter-fed AC distribution that terminates in Australian-standard outlets. It is most at home where crew and guests need everyday plug-in access inside the boat, not on open deck or in washdown areas.
