Overview

The Vimar Idea 16403 is a flush-mounted 230 V AC bell for the Idea modular range, with 50 to 60 Hz operation, an 8 VA load, 70 dB sound output, and IP30 protection. It takes one module, so it fits where panel space is limited and an audible signal is still needed.

On board, it makes sense in protected interior spaces where a 230 V AC circuit is already available, such as a cabin entry, utility area, or enclosed service panel. It is not a wireless unit and does not use a built-in battery, so it suits fixed installations where a simple hard-wired bell is the goal.

Key features

• 230 V AC, 50 to 60 Hz, 8 VA bell for fixed signalling circuits
• 70 dB sound level for an audible call or alert in enclosed spaces
• Flush-mounted body with one-module width in the Vimar Idea range
• IP30 protection for protected interior mounting points
• Plastic housing with no built-in battery and no wireless function

Variants

This product is offered in two color configurations within the same Idea bell format.

The change across the variants is the housing color. The 230 V AC, 50 to 60 Hz, 8 VA electrical rating, 70 dB sound level, IP30 protection, flush-mounted format, and one-module width stay the same.

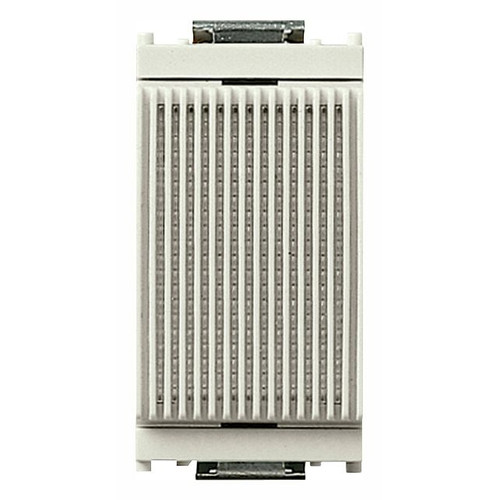

• VM16403.B, Color Ivory. This is the lighter finish in the range and keeps the bell visually closer to light trim and faceplates.

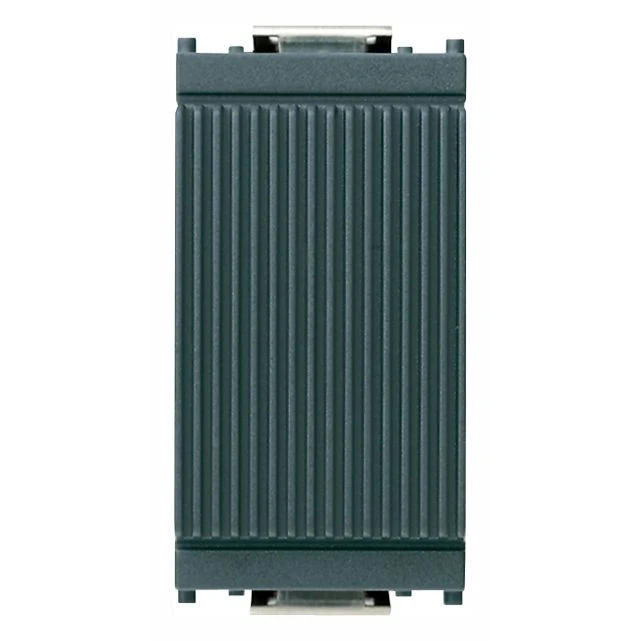

• VM16403, Color Gray. This version uses a darker finish and keeps the bell visually closer to gray switchgear and panels.

Compatibility and fit

This bell belongs to the Vimar Idea device family and uses a flush-mounted body that takes one modular spacing. It makes sense for refits or replacements where the vessel already uses Idea frames and inserts, or where a new interior panel is being built around that format.

Installation and use on board

Because it runs on 230 V AC and carries an IP30 rating, it is better suited to enclosed locations away from spray, washdowns, and exposed deck mounting points. It is more appropriate for cabins, protected companionway areas, or interior service spaces where an audible call or attention signal is needed.
