Overview

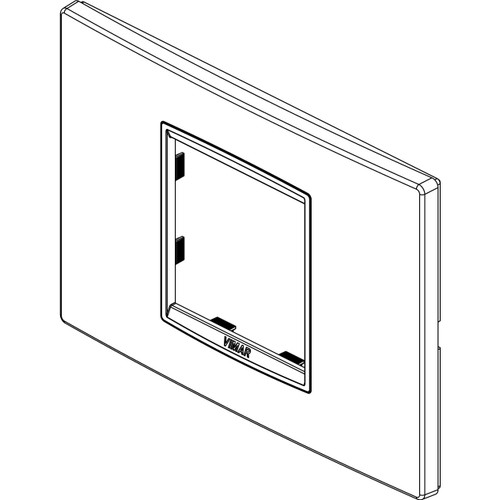

The Vimar Eikon 20652 is a 2-central-module Classic cover plate range for Eikon wiring devices. It is the visible trim piece that finishes a two-module switch or control point while keeping the opening clean and aligned. Depending on the variant, the face is offered in metal, glass crystal, solid wood, or technopolymer, so the same frame format can be matched to very different interior styles.

Across the range, the frame can be mounted horizontally or vertically and is suited to built-in installation, wall ducts, and subfloor installation duct boxes. Depending on the material, overall size is about 119.8 to 120 mm wide, 84.8 to 85 mm high, and 9 to 10 mm deep. The range is halogen-free and uses clamp mounting, with IP00 protection for protected interior locations.

On board, this is the sort of frame used around cabin lighting switches, berth controls, fans, outlets, or other interior panels where finish matters and the location is kept out of direct spray. The integrated mounting grid and label surface also help when grouped controls need a tidy layout and clear identification.

Key features

• 2-central-module format for Vimar Eikon inserts
• Horizontal or vertical mounting
• Suitable for built-in installation, wall ducts, and subfloor installation duct boxes

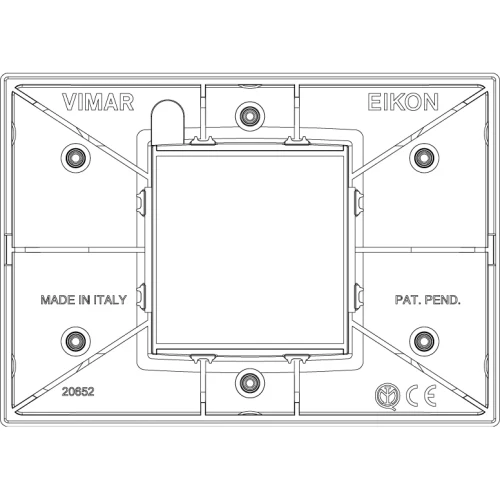

• Integrated mounting grid and label surface
• Clamp mounting with halogen-free construction
• IP00 rating for protected interior use
• Finish families in this range include metal, glass crystal, solid wood, and technopolymer

Variants

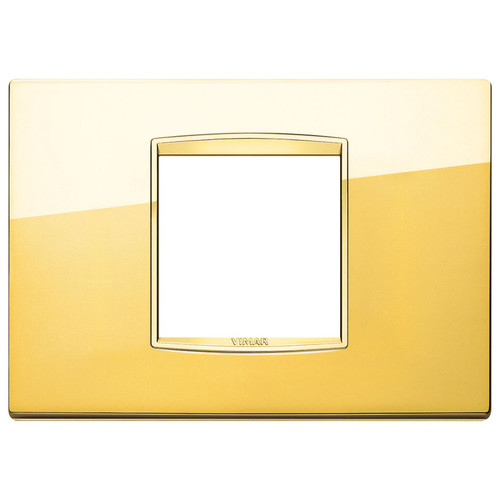

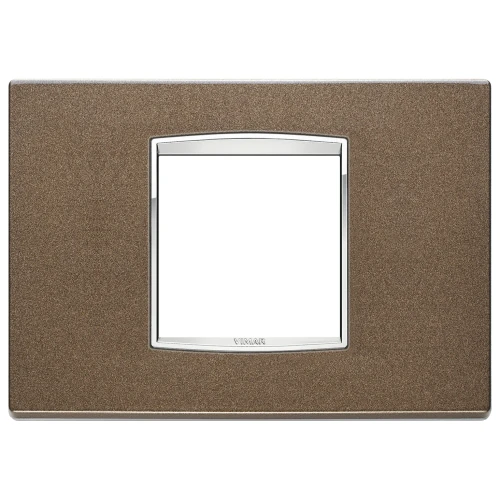

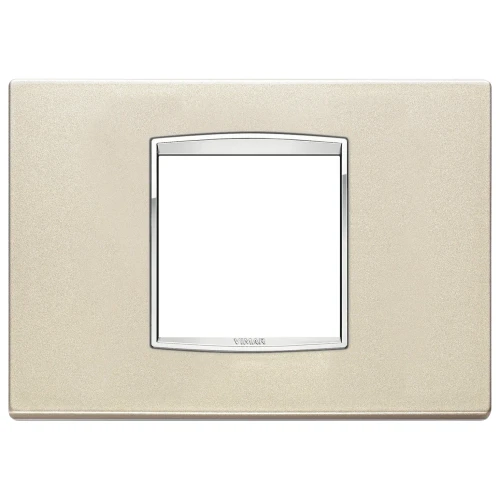

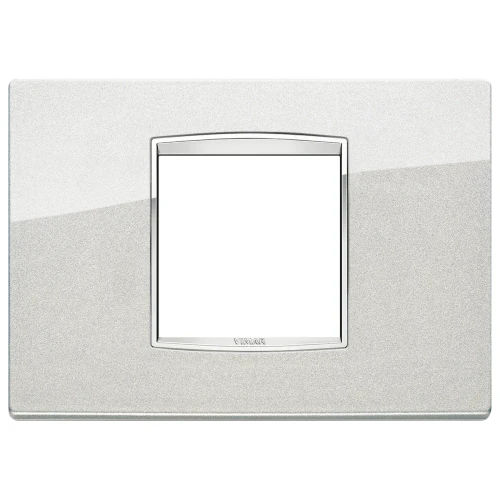

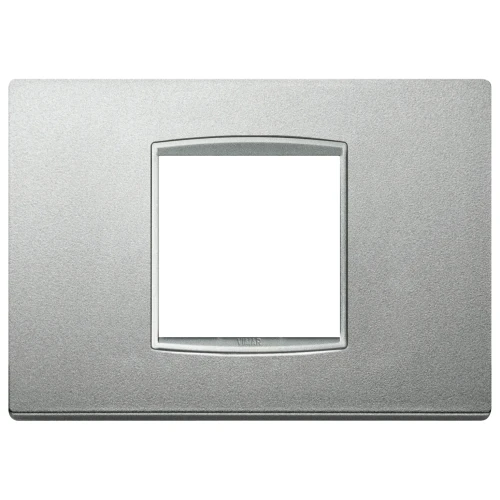

The 20652 range changes mainly in finish and face material. Options in this set include polished gold, satin gold, satin nickel, metallic silver, metallic champagne, metallic Siena brown, silver, matte silver, anthracite tones, arctic white, white, antique white, silver mirror, black ice, white oak, Africain Wengue, Italian walnut, and graphite.

The shared format across these variants is the 2-central-module layout with horizontal or vertical mounting. Dimensions can shift slightly by material, so it is worth checking the exact finish version when matching an existing cutout or replacing a frame in a finished interior panel.

Compatibility and fit

Check the insert layout before ordering. This frame is built around two central modules, which translates to two modules across in horizontal mounting or one vertically. In refits, that matters when you are trying to match an existing Eikon device arrangement without reworking the surrounding panel.

Where panel tolerances are tight, the family dimensions sit close to 120 x 85 mm, with depth around 9 to 10 mm depending on the variant. That makes it useful to confirm both the module format and the finish-specific frame version before replacing a damaged plate or standardizing several switch locations.

Installation and setup

Clamp mounting and the integrated grid make the frame straightforward to line up on finished bulkheads, furniture panels, or accommodation-area partitions. The label surface is useful where similar controls sit side by side, such as interior lighting groups, fans, or service switches that need quick identification.

This range suits builders and refit owners who already use Vimar Eikon inserts and want the trim to match the cabin finish rather than stand out as generic hardware. It makes the most sense in saloons, cabins, heads, and covered helm areas where appearance matters and the plate is not exposed to weather.
