Overview

The Vimar LINEA Series is a 2-module cover plate range for LINEA switching devices, with a 90 x 88 mm face, a slim profile of about 7.8 mm, and snap-on fastening over a matching frame.

This plate is used to finish a 2-module switch or control point cleanly on interior panels. It can be mounted horizontally or vertically and is suitable for flush-mounted, built-in, wall duct, and subfloor duct box installations. The range is halogen-free and is available in technopolymer, painted technopolymer, and metal versions.

For marine interiors, this is a trim and finishing part rather than a sealed front. The protection rating is IP00, so it belongs in protected cabin and interior joinery locations instead of exposed deck, cockpit, or washdown areas.

Key features

• 2-module LINEA cover plate format for Vimar switching device installations
• 90 x 88 mm overall size with an approximate depth of 7.8 mm
• Snap engagement onto the mounting frame for a clean finished face
• Can be fitted horizontally or vertically
• Suitable for flush-mounted, built-in, wall duct, and subfloor duct box installations
• Halogen-free construction across the range
• Available in technopolymer, painted technopolymer, and metal finishes

Variants

This range changes mainly by colour and outer material while keeping the same 2-module LINEA plate format. The listed versions cover technopolymer, painted technopolymer, and metal finishes.

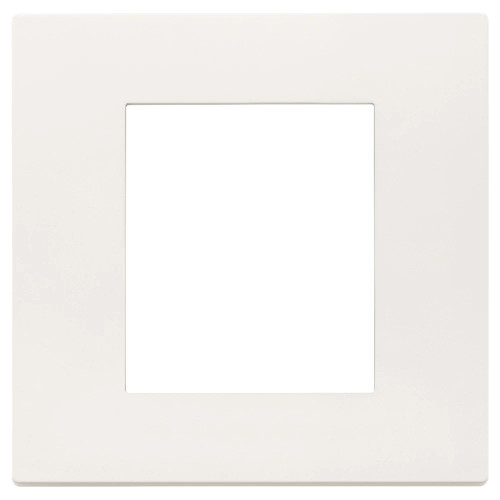

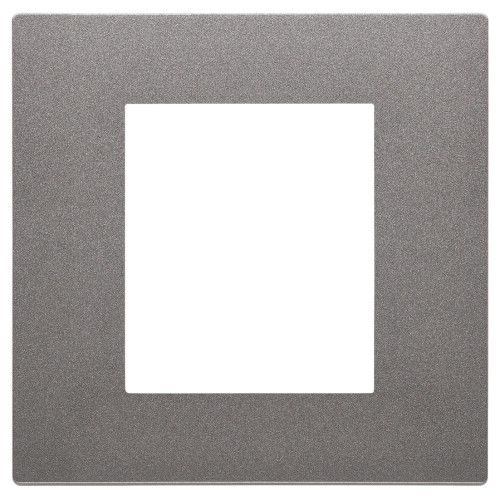

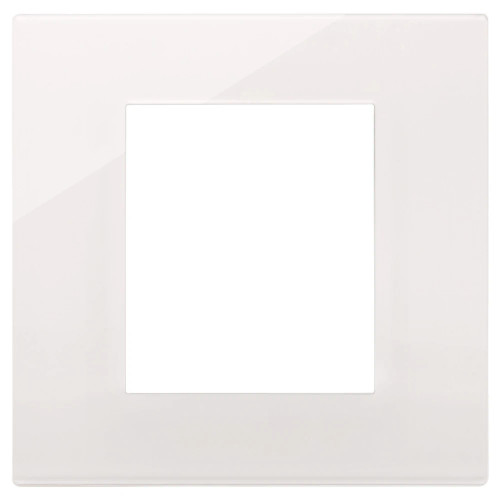

Technopolymer options include White, Canvas, Black, White Reflex, Canvas Reflex, and Black Reflex, along with painted technopolymer finishes such as Silver, Clay, and Metal. Metal versions cover Bronze, Brushed Gold, and Satin Inox. Across the range, the mounting style, overall footprint, and use as a 2-module cover plate stay aligned with the same LINEA family format.

Compatibility and fit

This plate is intended for Vimar LINEA 2-module installations and clips onto a compatible 2-module mounting frame in the same system. Common matches in the LINEA range include frame references 30602 and 30603.

It is a sensible choice when the goal is to keep switch and control points neat and consistent across the boat, especially in cabins, saloon bulkheads, galley panels, and other protected interior spaces where the electrical hardware is visible as part of the finish.

Use on board

This range suits refits and new builds where the vessel is already using Vimar LINEA devices, or where the owner wants one finish language carried across lighting and switching points inside the boat. The wider choice of colours and metal looks also makes it easier to match painted panels, timber interiors, and modern soft-touch joinery without changing the underlying 2-module layout.
