Overview

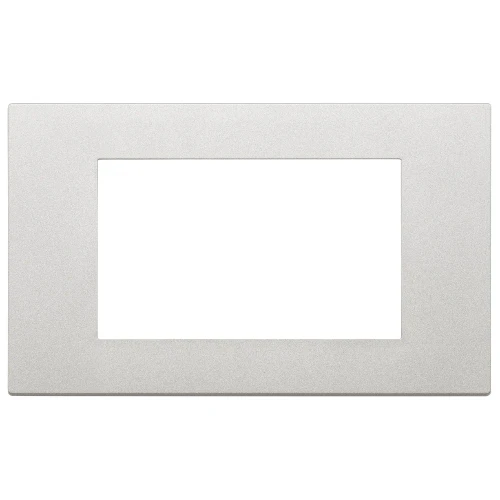

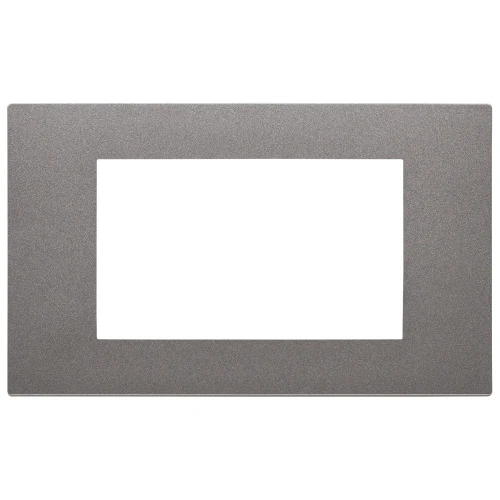

The Vimar LINEA is a 4-module cover plate for modular wiring devices, with support for horizontal or vertical mounting and a front size of 146.6 x 88 mm. It is used as the visible trim for a 4-module point and suits flush-mounted and built-in installations, including wall ducts and subfloor installation duct boxes.

The face keeps a matte finish across the range and locks in place with snap fastening. Technopolymer versions are 10.4 mm deep, while metal versions are 10.3 mm deep. The plate is halogen-free and rated IP00, so it belongs in protected interior locations rather than exposed positions that see spray or washdowns.

Key features

• 4-module format with support for 4 horizontal modules or 1 vertical module
• 146.6 x 88 mm front size with 4.7 mm built-in height
• Works with flush-mounted and built-in installations, including wall ducts and subfloor duct boxes
• Snap fastening that keeps plate fitting straightforward and makes later access easier
• Halogen-free construction with a matte surface
• Technopolymer and metal versions across the range, depending on finish
• IP00 rating for protected interior locations

Variants

This range changes mainly in finish and outer material. Technopolymer versions are offered in White, Black, Canvas, Clay, Silver, Metal, White Reflex, Canvas Reflex, and Black Reflex, while metal versions are offered in Bronze, Brushed Gold, and Satin Inox.

The core format stays consistent across the range: 4 modules, horizontal or vertical mounting, snap fastening, flush-mounted or built-in use, and a 146.6 x 88 mm face size. Depth changes slightly by construction, with technopolymer plates at 10.4 mm and metal plates at 10.3 mm.

Installation and fit

This cover plate is made for a 4-module LINEA assembly and sits as the final visible trim once the device support is in place. The snap-on fixing helps during service work because the front can be removed without disturbing the box installation behind it.

It works well in cabins, saloons, galley areas, helm consoles under cover, and other dry interior spaces where the switch point needs a neat finish that matches the rest of a LINEA installation. It suits new builds and refits that are keeping a consistent switch and socket style across the interior.
