Overview

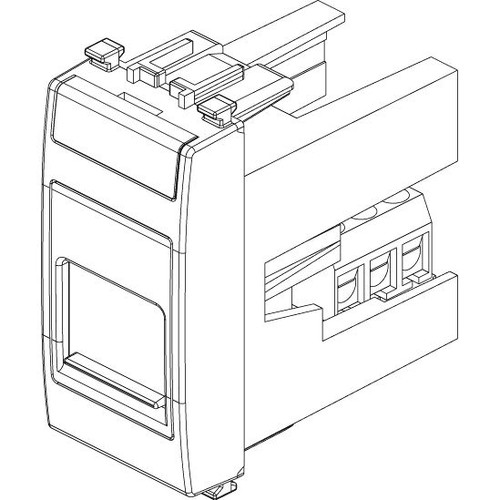

The Vimar Eikon 20323 is an RJ12 phone socket outlet for the Eikon modular system, built around a 6-position 6-conductor 6/6 connection with screw terminals and a dust cover. It is a 1-module insert with a 22.30 mm width, 49.00 mm height, 43.10 mm depth, and IP40 protection, which makes it suited to protected interior panel spaces where a compact communication point is needed.

For boat work, this type of insert fits best in cabins, helm consoles, nav stations, and other dry interior areas where the vessel already uses Vimar Eikon modules or where a flush-mounted RJ12 connection is being added during a refit. The body is thermoplastic and halogen-free, and the insert is intended for UAE/IAE ISDN applications.

Key features

• RJ12 outlet with 6-position 6-conductor 6/6 layout and screw terminals for fixed wiring connections.
• Dust cover helps keep the contact area protected when the socket is not in use.
• 1-module format for Eikon modular installations where panel space is limited.
• Flush-mounted body with clamp mounting for a tidy fit in interior bulkheads, furniture panels, and console surfaces.
• IP40 protection for dry interior locations, not exposed deck or washdown areas.
• Thermoplastic construction with halogen-free material and a device depth of 43.10 mm to check before fitting in shallow partitions.

Variants

This outlet is offered in three color versions.

The differences across the range are visual. The connector format stays RJ12 6/6 with screw terminals and a dust cover, and the insert remains a 1-module flush-mounted Eikon device.

• VM20323.B: Color White. The white version keeps the outlet discreet against light liners, cabinetry, and interior trim.
• VM20323.N: Color Silver. The silver version pairs more naturally with metallic-looking trim and other Next finish components.
• VM20323: Color Grey. The grey version blends into darker panels and existing grey Eikon hardware.

Compatibility and fit

This insert is made for Vimar Eikon modular installations and takes up 1 module within the system. Before ordering for a replacement or refit, it is worth checking that the frame, cover plate, and mounting arrangement on the boat are from the same Eikon family, and that the cable run actually terminates in an RJ12 6/6 connection rather than RJ11 or RJ45.

Because it is flush-mounted and rated IP40, this outlet belongs in enclosed areas rather than places that see spray, rain, or regular washdowns. It suits boats where the owner wants to replace a worn communication insert, finish a custom interior panel, or keep socket layouts consistent across an Eikon-equipped cabin or helm area.
