Overview

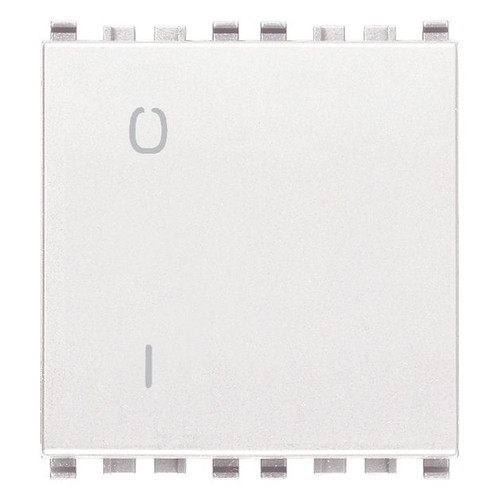

The Vimar Eikon is a 2-pole 1-way rocker switch for modular flush-mounted installations, rated at 16 AX and 250 V~. It is lightable, uses a replaceable rocker button, and supports exchangeable LED lighting for control or orientation. Across the listed variants, the switch is available in 1-module and 2-module formats and in grey, silver, or white finishes.

On board, this type of switch fits best in protected interior spaces such as cabins, enclosed helm areas, galleys, and heads where a clean flush finish matters and the circuit calls for a conventional wall-style control. Its IP40 protection is suited to dry or sheltered locations rather than open decks or washdown areas.

Key features

• 2-pole 1-way switching layout with a 16 AX, 250 V~ electrical rating
• Lightable rocker with a replaceable button and exchangeable LED for control or orientation lighting
• Available in 1-module and 2-module versions to match different Eikon panel layouts
• Grey, silver, and white finish options for matching interior trim and switch banks
• Screw terminal connection for straightforward wiring during new installs and refits
• Flush-mounted snap-fit device with halogen-free thermoplastic construction and IP40 protection
• Suitable for self-ballasted lamp loads up to 200 W

Variants

This range covers the same basic switch in multiple finish and module combinations. The listed options span grey, silver, and white, with either a 1-module or 2-module front format.

The switching function stays the same across the range: a 2-pole 1-way switch rated at 16 AX and 250 V~, with a lightable, replaceable rocker. The module choice mainly changes how much front-panel space the switch occupies in an Eikon installation, while the color choice changes the visible finish.

Installation and setup

This is a flush-mounted modular device with snap fastening and screw terminals. In a boat refit, that matters most when you are matching an existing Eikon layout or planning a new switch bank around 1-module or 2-module positions. It suits finished interior panels and bulkheads more naturally than exposed utility spaces.

Because it is a 2-pole switch, it works in circuits where both poles are intended to be switched together. The optional lighting function can also help with switch location or status indication in low-light interior areas.

Compatibility and fit

Check the module count in your existing frame and cover plate before ordering. A 1-module version and a 2-module version do not use the same front-space allocation, so the opening and trim need to match the selected format.

This range makes sense for new interior electrical work and refits where Vimar Eikon hardware is already being used, and where the switch will live in a protected part of the vessel rather than a salt spray or washdown zone.
