Overview

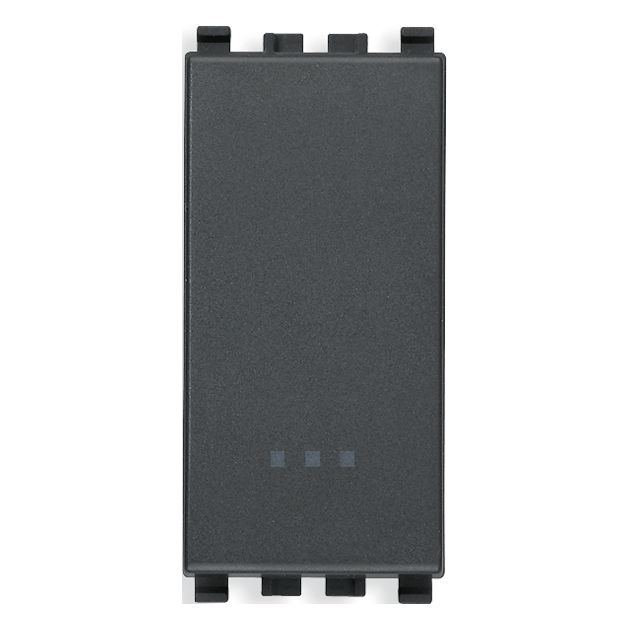

The Vimar Eikon 20001 is a 1-way rocker switch for flush-mounted modular installations, rated 16 AX at 250 V with optional LED illumination and IP40 protection. It uses a replaceable button, screw-terminal wiring, and a built-in depth of 25 mm, which helps when panel space is limited and future service access still matters.

This switch is a practical choice for interior switching points on board where the installation stays protected from direct spray. The body is thermoplastic and halogen-free, the finish is matt, and the lighting function can be used for control or orientation when you need to find the switch quickly in low light.

Key features

• 1-pole 1-way switch with rocker/button operation
• Rated 16 AX at 250 V
• Supports up to 200 W for self-ballasted lamps
• Optional illumination for control or orientation with an exchangeable LED
• Replaceable button and modular format for flush-mounted installations

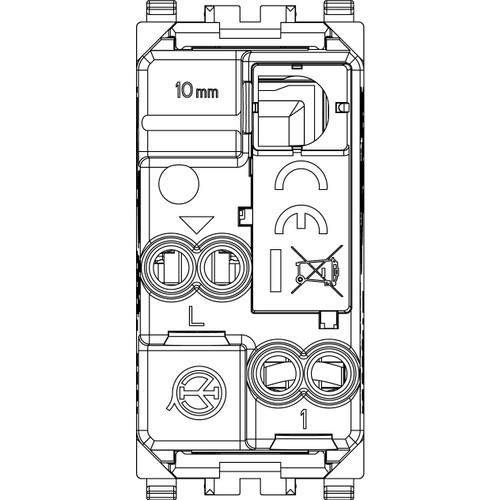

• Screw-terminal connection for fixed wiring
• Thermoplastic construction that is halogen-free with a matt surface
• IP40 protection for locations inside the boat that stay protected from spray and washdowns
• Built-in depth 25 mm, overall depth 36.1 mm, and label space for circuit identification

Variants

This range is offered in grey, silver, and white, and in 1-module or 2-module formats. The 1-module versions are 22.3 mm wide, while the 2-module versions are 44.8 mm wide. Across the verified listings, height stays at 49 mm and overall depth stays at 36.1 mm.

Across the listed versions, the switching function stays the same: 1-pole 1-way operation, 16 AX at 250 V, optional LED lighting, replaceable button, screw-terminal connection, and IP40 protection. The difference comes down to the finish on the visible face and the module width required by the installation.

Installation and fit

Check the module width before ordering and confirm the mounting location can accept the 25 mm built-in depth. Because this is a flush-mounted switch with screw terminals, it suits fixed interior installations where wiring can be terminated securely and accessed again later if needed.

Use on board

For boat interiors, this switch fits well in cabins, galleys, utility spaces, and service panels where a neat flush finish matters and the area stays sheltered. It is not suited to exposed helm, cockpit, or deck locations that need a higher level of sealing against water and washdowns.
