Overview

The Garmin BlueChart g3 Vision HD is an electronic chart for the Adriatic Sea, North Coast (VEU452S) that loads on compatible Garmin chartplotters and supports route planning and on-the-water navigation with integrated Garmin and Navionics chart content.

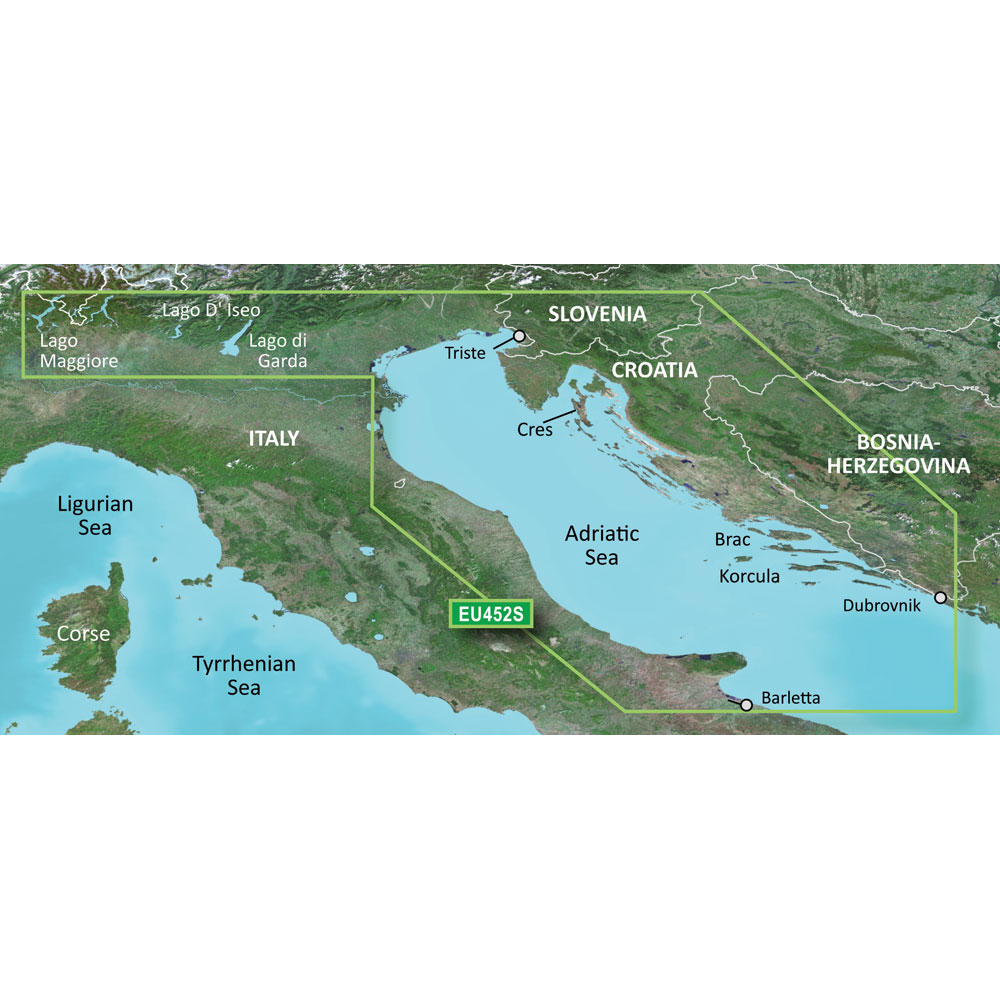

Coverage runs along the Adriatic from Barletta north to Monfalcone in Italy and southeast to Dubrovnik in Croatia, and it also includes detailed coverage for Lago Maggiore, Lago d'Iseo, and Lago di Garda. In supported areas, you can work with up to 1 ft (30 cm) contours and use Depth Range Shading for up to 10 depth bands, which helps when you are planning anchorages, tracking a contour line while fishing, or easing into a marina.

This cartography is a good match for skippers running the Italian coast, hopping across to Croatia, and anyone who wants a chart view that stays useful when you are picking your way through islands, harbors, and tight approaches.

Key features

• VEU452S coverage for the Adriatic Sea north coast: from Barletta north to Monfalcone (Italy) and southeast to Dubrovnik (Croatia), plus Italian lakes Lago Maggiore, Lago d'Iseo, and Lago di Garda
• Integrated Garmin and Navionics chart content with navigation aids, depth contours, tides and currents, and IALA symbols
• Up to 1 ft (30 cm) contours in supported areas for reading bottom shape and working structure lines
• Depth Range Shading for up to 10 depth bands and Shallow Water Shading at a user-defined depth
• Auto Guidance route suggestions on compatible plotters based on preferred depth and overhead clearance settings
• Vision-level layers such as 3D chart views (MarinerEye and FishEye) and imagery layers like satellite views and aerial photos in supported areas

Variants

This chart is offered in multiple configurations to match how you prefer to load cartography on board.

All variants cover the same Adriatic Sea, North Coast chart region (VEU452S). The difference is the format you receive and the workflow used to get it onto your Garmin display.

• 010-C0796-00: Format microSD/SD. Insert the preprogrammed card into a compatible chartplotter with a microSD or SD slot and select the chart region from the chart options.
• 010-D0466-00: Format Download. Install the chart using Garmin Express, then use the programmed microSD/SD card with the compatible chartplotter.

Compatibility and fit

This cartography is intended for compatible Garmin chartplotters and sounders. If you are using the microSD/SD card format, confirm your display has the correct card slot and that the unit supports BlueChart g3 Vision mapping.

On a Garmin Marine Network, a single mapping card can be shared across compatible displays, so one unit can host the card while other stations view the same charts.

Auto Guidance and imagery layers depend on chartplotter model and settings. Treat any suggested route as a planning tool and verify it against local conditions, notices, and what you see on the water.

Installation and setup

For the microSD/SD version, power the display off, insert the card, and restart. Once the unit finishes booting, the chart region becomes available in your chart selection.

For the download version, complete the install in Garmin Express and then move the programmed card to the boat. Keep the card seated while the chart is in use so the plotter can read the data.

Use on board

Depth shading and tight contours help when you are planning anchorages along the Croatian islands, keeping an eye on shoaling areas near harbor entrances, or following a depth line while slow trolling. The 3D views and imagery layers, when available in the area you are zoomed into, can also help with situational awareness when you are lining up an unfamiliar marina or port approach.
