Vimar Plana 2-Central-Module Cover Plate, 120x80x9mm, IP00, Clamp Mount
Overview

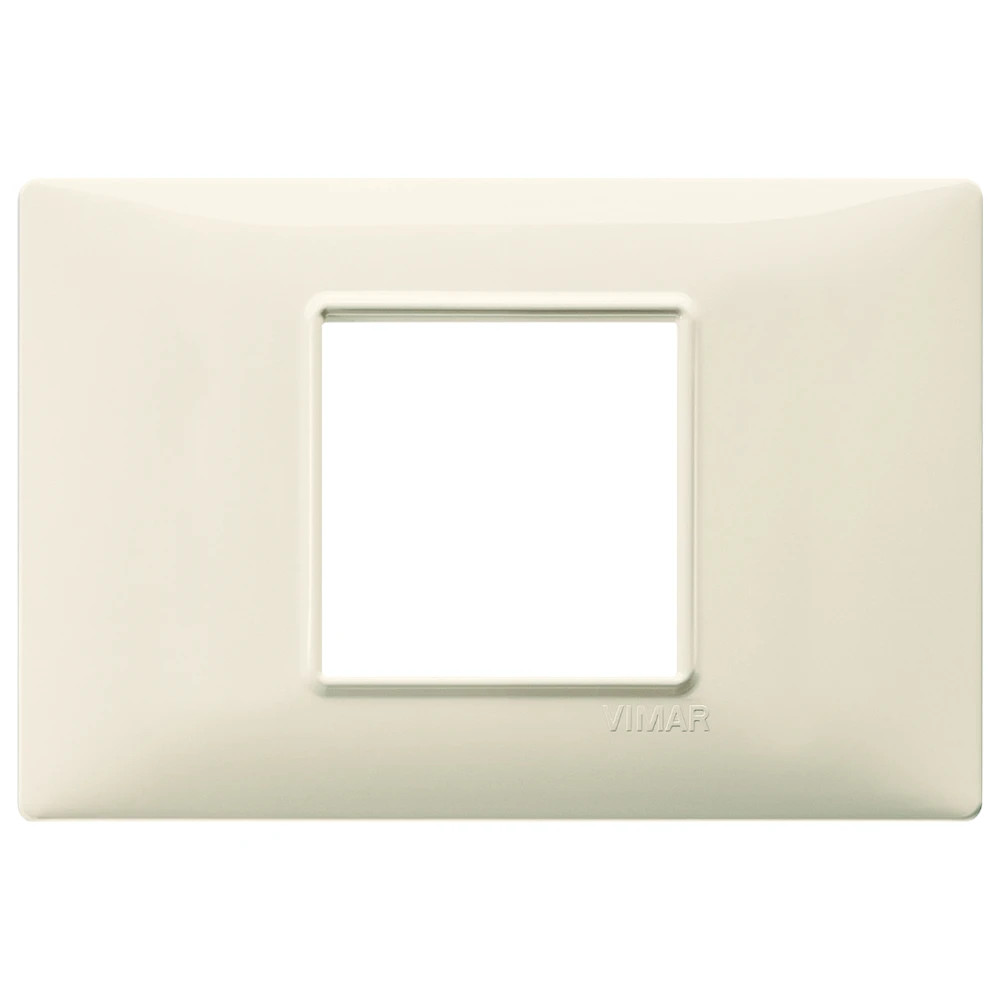

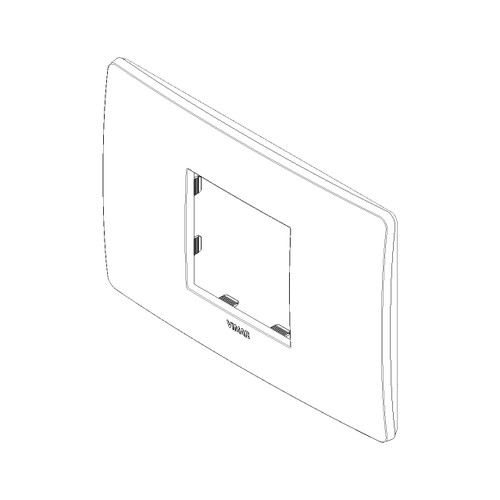

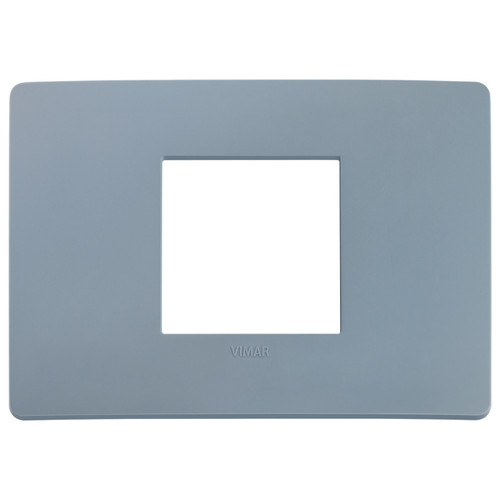

The Vimar Plana Series is a 2-central-module cover plate that finishes a Plana wiring device with a tidy faceplate around the installed modules.
It measures 120 mm wide by 80 mm high with a 9 mm depth, and it can be installed either horizontally or vertically. The plate uses clamp mounting and includes a mounting grid as part of the fixing system.
This cover plate is rated IP00, so it belongs in protected, dry locations on board such as cabins, nav stations, or inside a helm console, not on open decks or anywhere that sees washdowns.
Key features
- 2-central-module cover plate for the Plana format; fits either horizontal or vertical layouts.
- Overall size: 120 mm (W) x 80 mm (H); depth: 9 mm.
- Clamp mounting with mounting grid.
- IP00 protection level for interior or otherwise sheltered installations.
- Suitable for built-in installation and also compatible with wall duct and floor box setups where those systems are used.
- Offered in technopolymer or metal, with a wide range of finishes including Plana Up options.
Variants

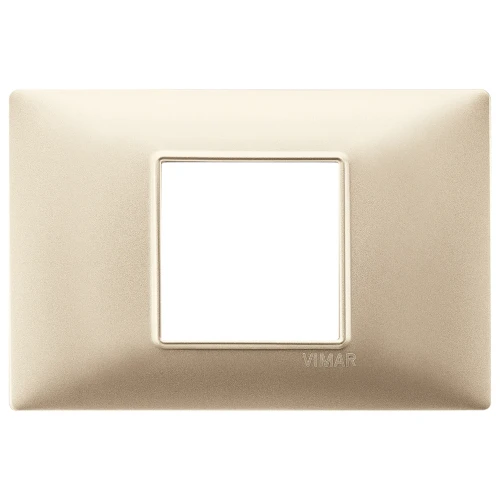

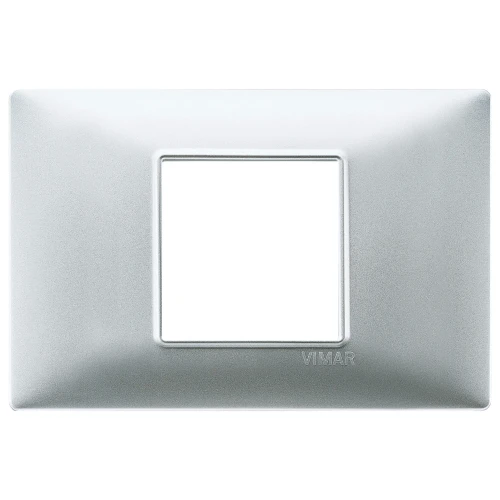

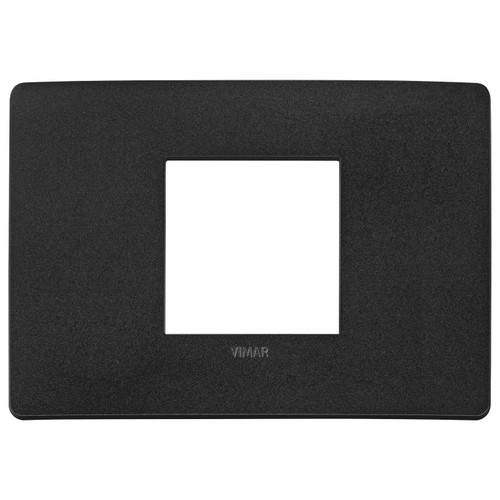

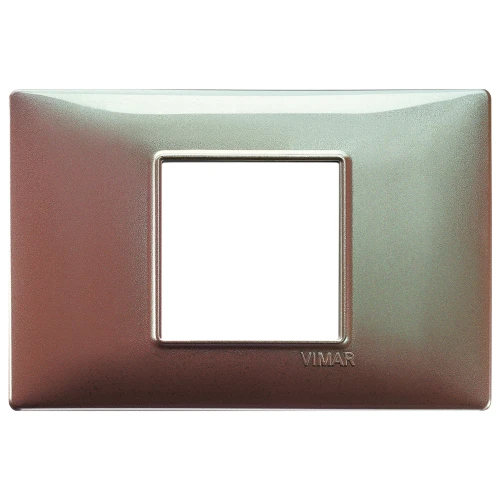

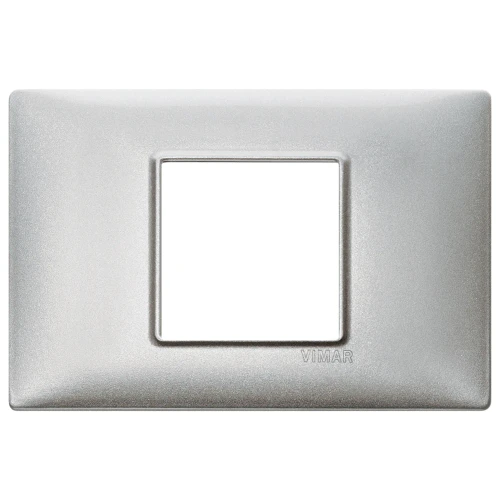

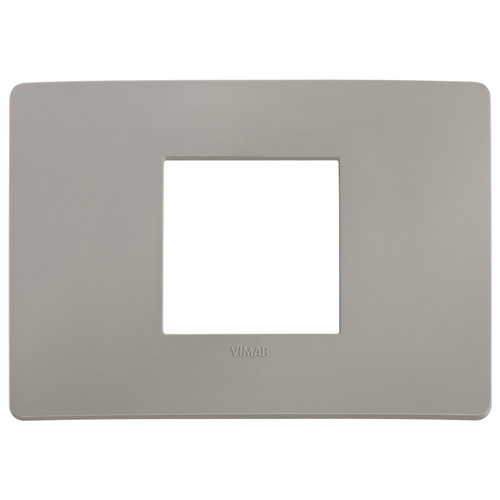

This cover plate is available in a broad finish range, with versions in technopolymer and in metal.
Finishes span standard Plana colors and effects (including matt, pearl, polished, iridescent, and Reflex styles) as well as Plana Up finishes. The main differences across the range are the finish appearance and the material choice.
Compatibility and fit
This plate is for the Plana 2-central-module layout. Before ordering, confirm your device support/frame is the 2-central-module type and that your cutout or mounting space matches the 120 mm x 80 mm footprint.
As a cover plate, it does not change any electrical ratings or wiring method. It is the finishing piece that sits over the support and modules once the device is installed.
Installation and setup
Install the support and modules first, then fit the plate using the mounting grid and clamp fixing. Because the same plate works in horizontal or vertical orientation, it is easier to keep a consistent look when space dictates a rotated installation.
For service access, remove the plate to reach the modules, then refit it once the device support is seated flat and the wiring is secured behind the panel.
Use on board
On boats this style of plate is commonly used for cabin lighting controls, galley or head switches, and accessory panels in protected interiors. It is a good match for refits where you want the switchgear finish to blend with the surrounding joinery and hardware.
If the location is exposed to spray, plan the installation so the modules sit inside an appropriate protected enclosure and keep the cover plate out of direct water contact.
