Overview

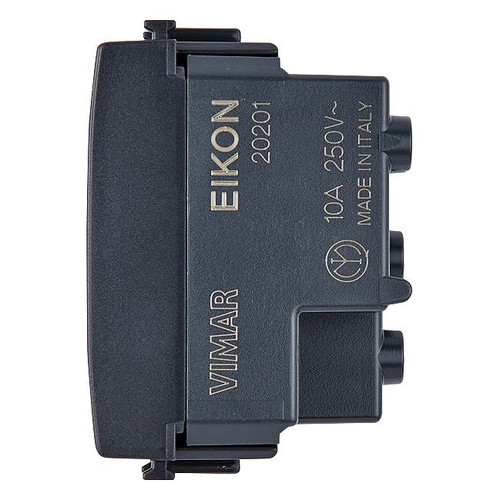

The Vimar Eikon 20201 is a 2P+E SICURY socket outlet in Italian standard P11 format for 250 V AC circuits up to 10 A. It is a 1-module device for flush-mounted installation, with screwed terminals and a compact body that measures 22.3 mm wide, 49 mm high, and 25 mm deep.

On a boat, this outlet fits interior AC points where an Italian-standard receptacle is required and the panel system already uses Vimar Eikon modules. The body is plastic with thermoplastic, halogen-free construction, and the IP20 rating makes it suitable for dry cabin spaces rather than open deck positions, wet lockers, or areas exposed to spray and washdowns.

It also includes SICURY contact protection and a label space on the front, which helps in shared cabin, service, or utility installations where outlet identification matters.

Key features

• Italian standard P11 socket outlet with 2P+E contacts, rated 10 A and 250 V AC
• SICURY contact protection at the outlet face
• 1-module Eikon format for flush-mounted installation

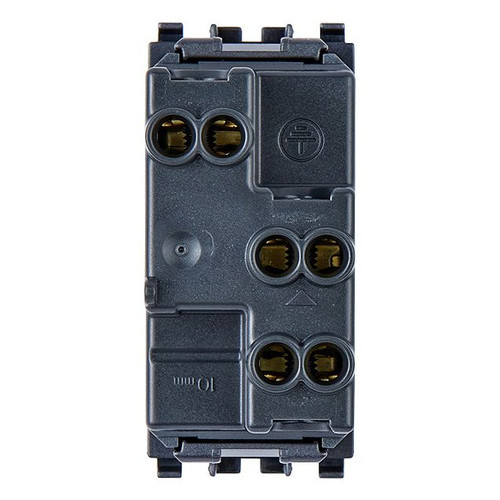

• Screwed terminal connection for fixed wiring
• Thermoplastic, halogen-free body with matt finish
• Integrated label space or information surface
• IP20 protection for dry interior locations
• Single outlet format with no built-in switch and no loop-through function

Variants

This outlet is offered in three color versions within the same Eikon 20201 family.

What changes between variants is the visible finish. The electrical format stays the same across the three versions: Italian type P11, 2P+E, 10 A, 250 V, 1-module construction, flush mounting, screwed terminals, and IP20 protection.

• 20201.B: Color White. This version keeps a light, clean look that sits naturally on pale cabin panels and white interior trims.
• 20201.N: Color Silver. This is the silver Next finish and it suits interiors that already use grey or satin-metal details.
• 20201: Color Grey. This darker finish blends more easily into utility panels and darker switch surrounds.

Installation and fit

This is a one-module, flush-mounted outlet, so compatibility starts with the matching Eikon support, cover plate, and back box or panel arrangement already fitted on the vessel. The screwed terminal connection and 25 mm body depth are worth checking where panel space is limited.

It belongs on the AC side of the boat electrical system, not on a 12V or 24V DC network. The main fit checks are the Italian P11 plug standard, the 10 A circuit rating, and a mounting position that stays dry in normal onboard use.

Use on board

This socket is a good match for boats with interior AC outlets in berth areas, saloons, nav stations, or galley panels where a compact flush fit is needed. It also suits refits where the visible finish needs to stay aligned with existing white, silver, or grey Eikon hardware without changing the outlet format.
