Overview

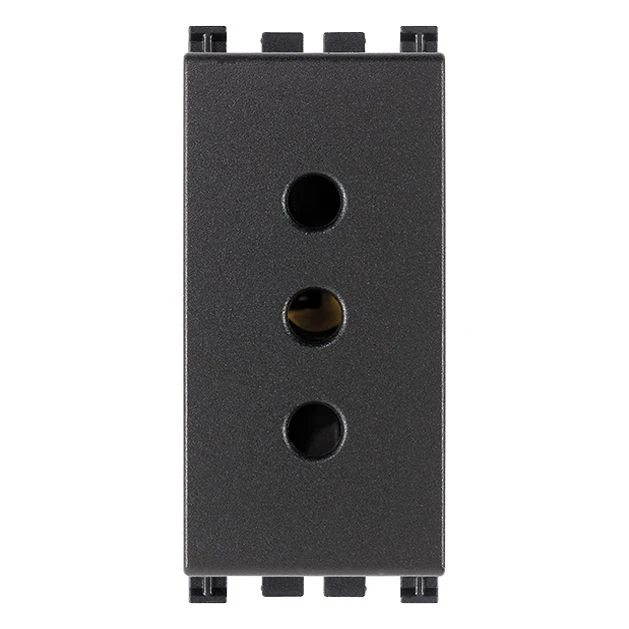

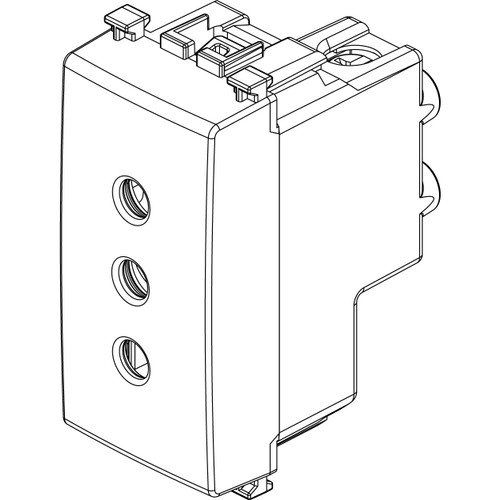

The Vimar Arké SICURY P11 socket outlet is a 2P+E outlet for Italian standard P11 plugs with a 1-module format, flush mounting, and a 10 A 250 V rating. It uses screw terminals, supports 50 to 60 Hz circuits, and fits the Arké modular range for interior power points.

This outlet includes SICURY enhanced contact protection and an IP20 housing in halogen-free thermoplastic with a matt finish. On a boat, it makes sense in cabins, galley panels, chart tables, or other interior AC locations that stay dry. It is not the right choice for exposed deck areas, washdown zones, or lockers where spray and condensation are part of normal use.

Key features

• 2P+E Italian standard P11 socket outlet rated at 10 A and 250 V
• SICURY enhanced contact protection built into the outlet
• 1-module Arké device for flush-mounted installations
• Screw terminal wiring with snap mounting into the modular support
• Halogen-free thermoplastic body with IP20 protection for interior locations that stay dry
• Available in gray, white, metal finish, and antibacterial gray or white versions

Variants

This outlet is offered in five configurations.

Across the range, the outlet format stays the same: 2P+E Italian standard P11, 10 A 250 V, one-module layout, flush mounting, screw terminal connection, and IP20 protection. The differences are finish color and whether antibacterial treatment is included.

• VM19201: gray finish, antibacterial No. This is the standard gray version for Arké installations where the base finish is already in place.
• VM19201.M: metal finish, antibacterial No. This keeps the same outlet format with a metal-look finish that suits panels matched to metallic trim.
• VM19201.B: white finish, antibacterial No. This version keeps the same electrical layout in a white finish for lighter interiors and service spaces.
• VM19201.AB: gray finish, antibacterial Yes. This version adds antibacterial treatment for shared touch points such as heads, galleys, or crew areas.
• VM19201.AB.B: white finish, antibacterial Yes. This combines the antibacterial treatment with a white finish for the same kind of shared interior locations.

Compatibility and fit

This is a single socket outlet for Italian standard P11 plugs and Vimar Arké modular installations. It is not a universal shore power socket and it is not a weatherproof deck fitting. Before ordering for a refit, check that the vessel uses the Arké support and cover system, that the AC circuit matches the 10 A 250 V outlet rating, and that the intended location is an interior area with no direct spray.

Body depth matters when space behind the panel is tight. The gray, white, and antibacterial versions use a 25 mm device depth, while the metal-finish version is deeper at 34.5 mm.

Installation and setup

The outlet is wired through screw terminals and snaps into the modular support, which keeps installation straightforward when the panel is already set up for Arké devices. On boats, it suits new interior panels and replacement work where the existing switch and socket system is already based on Italian modular hardware.

Because this is an onboard AC component, it belongs in a circuit with the correct protection and isolation for the vessel. It is a practical match for owners and installers who need an interior socket that follows the Italian P11 format without moving to a larger industrial outlet style.

Use on board

This outlet fits best on boats that use Italian-style interior electrical accessories in cabins, saloons, chart stations, or galley furniture. The antibacterial versions make more sense in areas with frequent hand contact, while the standard finishes are mainly about matching the surrounding Arké trim.
