Overview

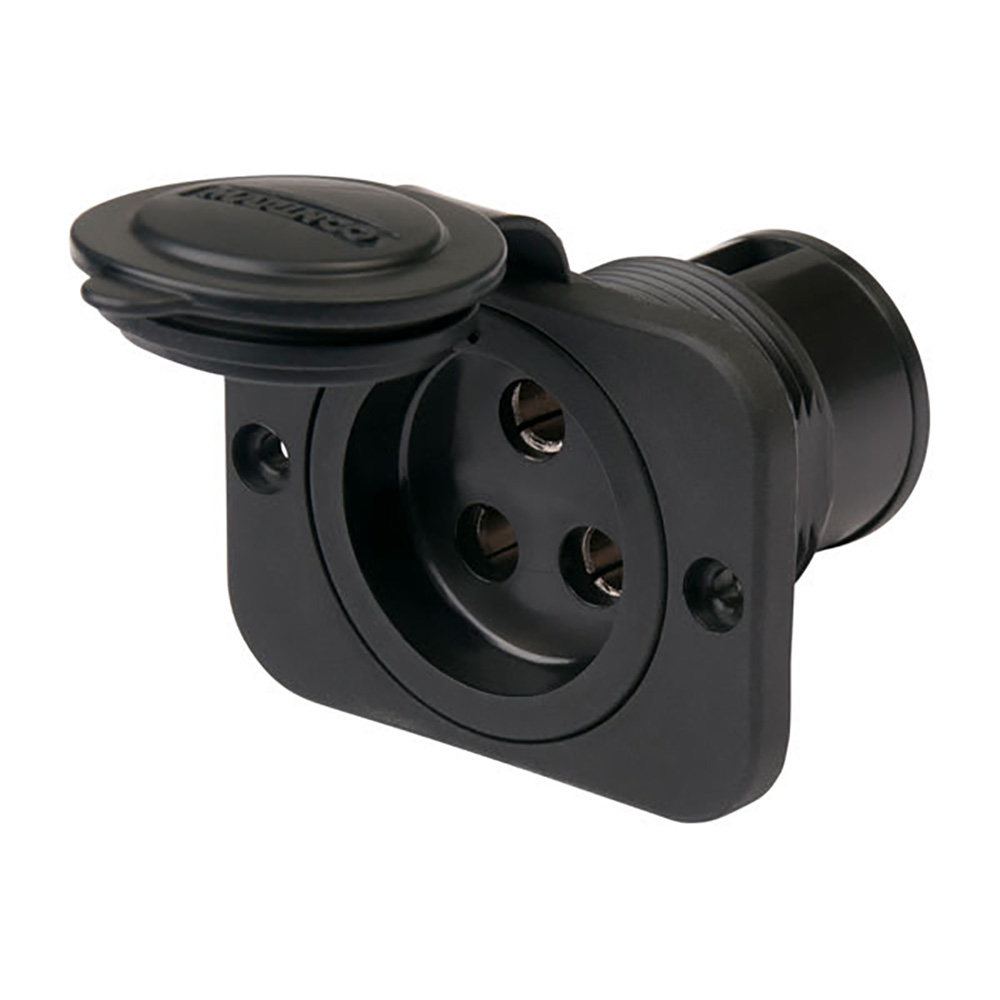

The Garmin 010-12832-42 is a 70A trolling motor power receptacle used to create a secure disconnect point in the power feed for compatible Garmin Force and Force Kraken trolling motors.

It is typically mounted at the bow or in a bulkhead so the motor can be unplugged for trailering, storage, servicing, or a cleaner deck layout, instead of disturbing battery connections each time. These trolling motors are installed on a 24 or 36 Vdc battery bank and are commonly wired through a continuous 60A circuit breaker in the positive lead, so the receptacle rating leaves comfortable headroom for the system.

Key features

• 70A-rated power receptacle for high-current trolling motor connections
• Compatible with Force Kraken trolling motors and Force trolling motors
• Creates a quick-disconnect point at the bow or a bulkhead rather than hard-wiring the motor directly to the battery bank
• Supports common 24V and 36 Vdc trolling motor installations that require a continuous 60A circuit breaker in the power feed
• Helps reduce wear on battery posts and ring terminals when the motor is removed regularly

Compatibility and fit

This receptacle is intended for Garmin Force family trolling motors. It is not a universal trolling motor connector, so confirm your motor model before ordering if your boat has a mixed-brand setup or an older non-Force installation.

Installation and wiring notes

Plan the mounting location where the plug can be reached without putting the connection under foot traffic or in a spot that gets constantly sprayed. Use proper cable support and strain relief so the power leads are not hanging on the back of the receptacle, and size your wire gauge for the full run length and current draw of a 24V or 36V trolling motor circuit.

As with any high-current DC connection, clean crimps and tight hardware matter. After the first few trips, recheck the connection for heat, looseness, or discoloration, especially if the trolling motor sees long runs on high thrust.

Use on board

This receptacle makes the most sense on boats where the trolling motor comes off between trips, on multi-use bows where you want the deck clear, or when you want a service-friendly disconnect point without opening battery compartments. It is a straightforward upgrade for anglers who trailer often and want the power connection to be repeatable and easy to inspect.

Maintenance and care

Keep the mating faces clean and dry, and inspect the contacts periodically, especially after saltwater use. A light film of dielectric grease on the mating surfaces can help slow corrosion, and any sign of overheating is a cue to inspect cable size, terminations, and mounting tightness.
