Overview

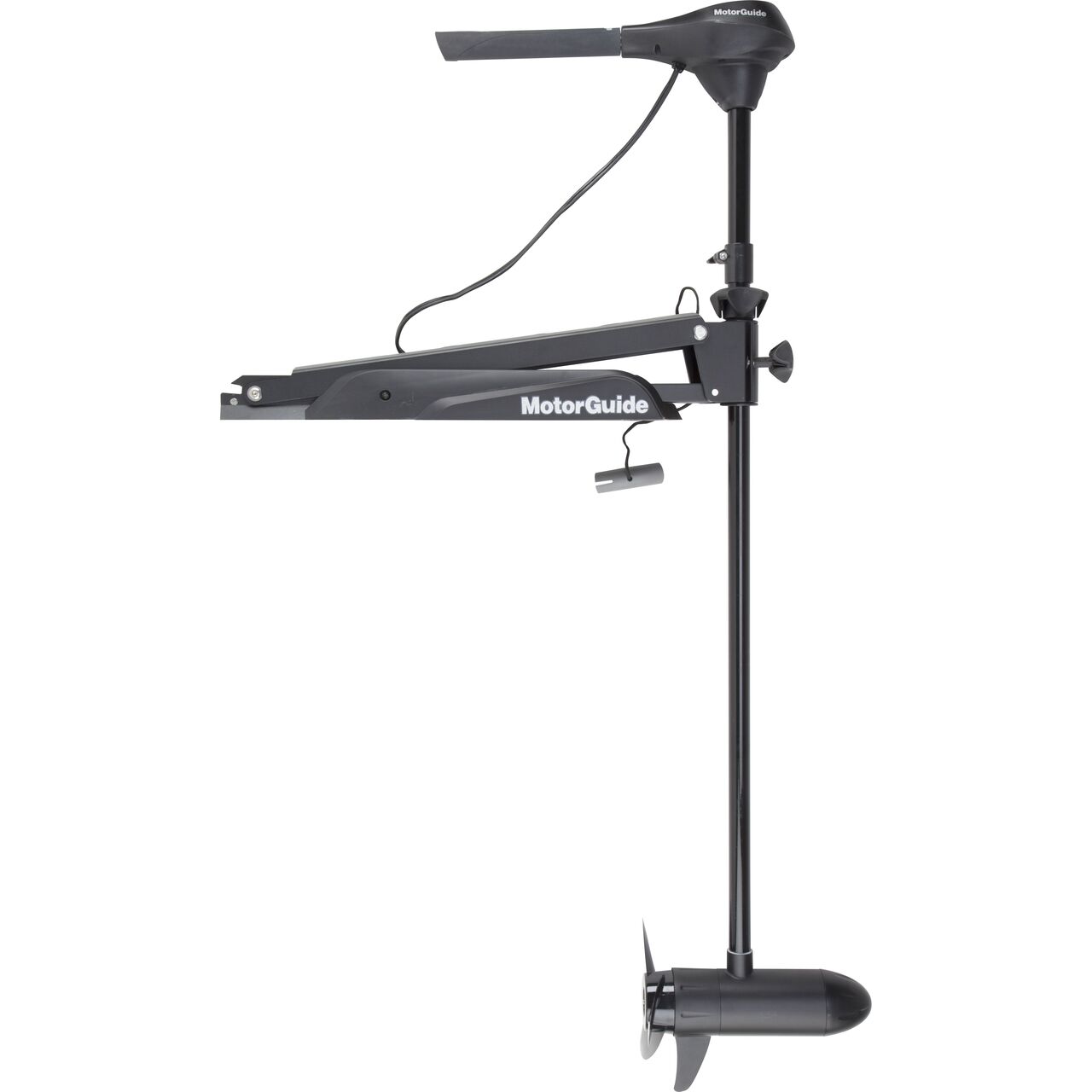

The MotorGuide 940200190 is a 12V freshwater bow-mount trolling motor with 55 lb thrust and a 50 inch shaft. This is the X3-55FW HB configuration with hand control and digital variable-speed operation, so you can dial in small speed changes instead of stepping through fixed speed clicks.

It is built around a composite shaft and a bow-mount bracket that stows and deploys with a latch and lock pin. For anglers running a dedicated 12V deep-cycle setup, it is a straightforward way to add quiet boat positioning for working shorelines, docks, and weed edges without jumping up to a 24V system.

Key features

• 55 lb peak thrust on a 12V system
• 50 inch shaft length for bow-mounted installations

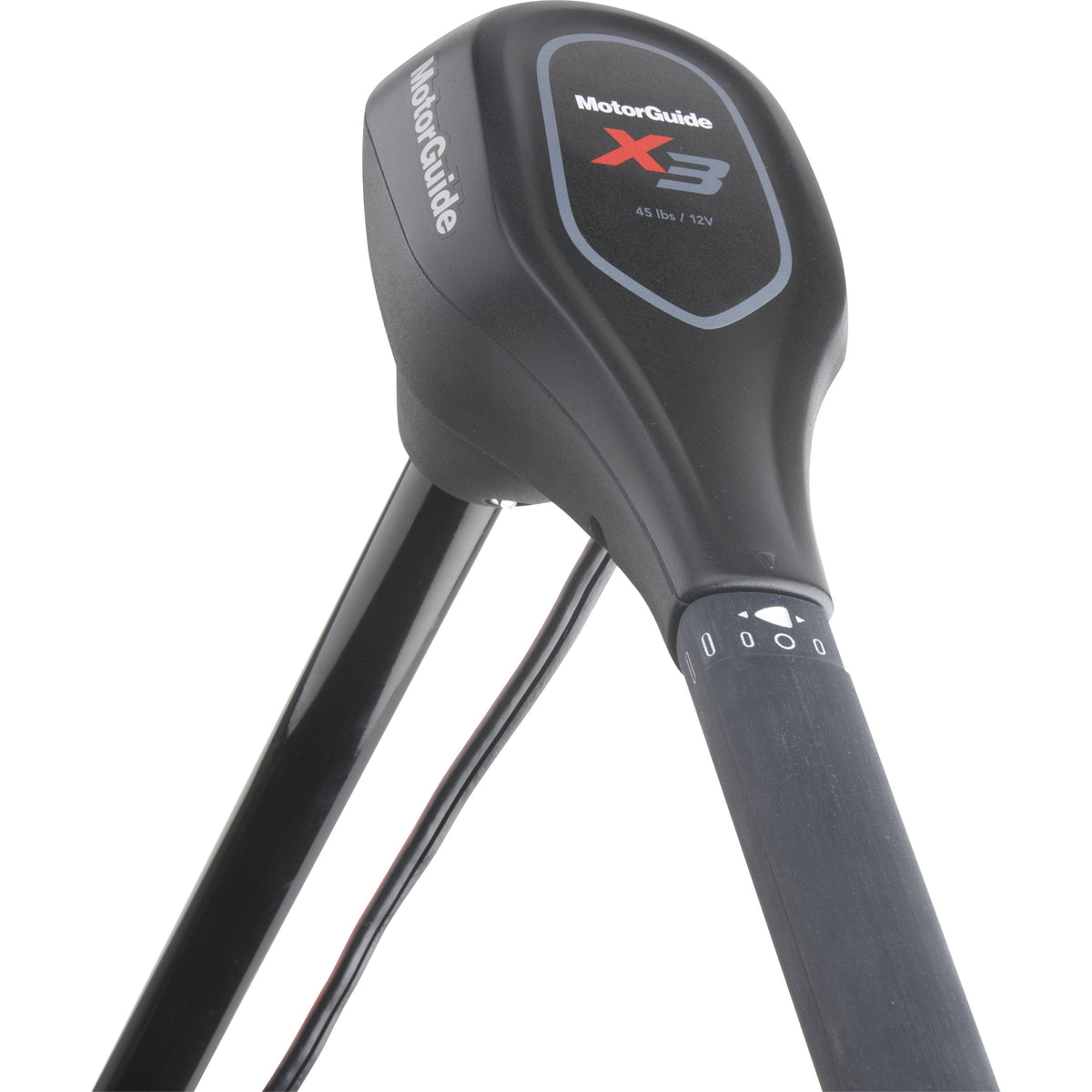

• Hand control with an extending handle and adjustable steering tension collar
• Digital variable-speed control with forward and reverse selection
• Battery indicator light for quick state-of-charge checks while you fish
• Composite shaft backed by a limited lifetime warranty

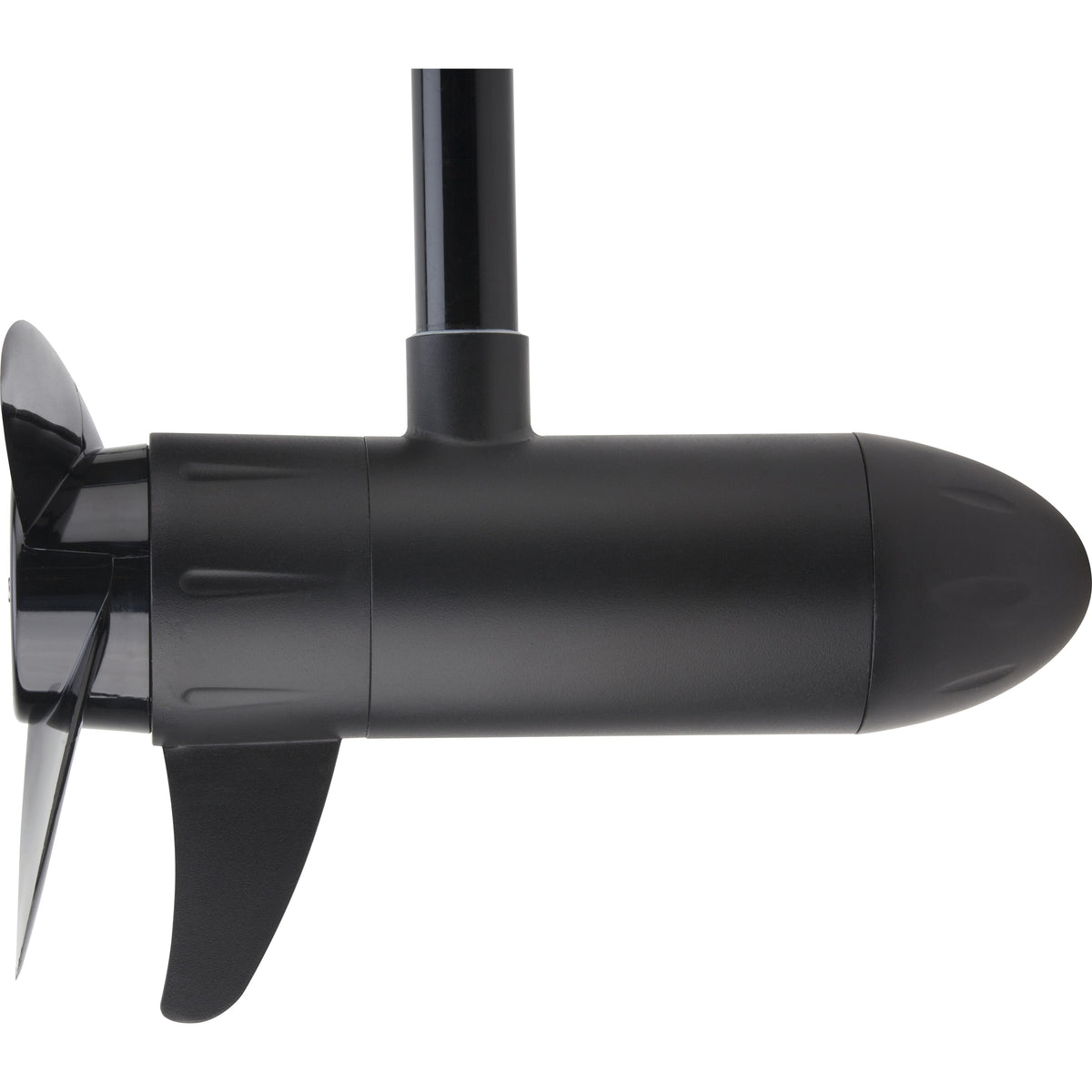

• Stainless steel propeller shaft with a 3-blade Machete III prop
• Typical rigging uses 6-gauge wire and a manual-reset breaker in the positive lead (50A, or 60A preferred)

Installation and setup

Plan the mount location so the motor can swing and stow without the column contacting the bow. A practical rule is to leave about 3 inches of clearance between the bow and the motor column when it is deployed.

Use at least four mounting bolts and spread them as far apart as practical for a stable base. Drill clean 1/4 inch holes, and on fiberglass decks, a light countersink helps reduce the chance of gelcoat cracking around the fasteners.

Electrical and system integration

This model runs on a single 12V battery. For consistent thrust and longer runtimes, pair it with a dedicated deep-cycle marine battery and keep the trolling motor circuit separate from your engine starting battery whenever possible.

Install a manual-reset circuit breaker in line with the positive lead, close to the battery. Keep all cable ends clean and tight, and use appropriately sized cable for the length of the run so voltage drop does not show up as lost power on the water.

Compatibility and fit

The 50 inch shaft length is commonly used on boats with a higher bow or raised casting deck where a shorter shaft can ventilate in chop. When setting motor depth, keep the propeller fully submerged, typically 6 to 12 inches below the water surface, to avoid pulling air and losing bite.

This is a freshwater unit. If it sees brackish spray or gets trailered in road salt, rinse it down with clean water afterward and pay attention to fasteners and electrical connections.

Maintenance and care

Before each trip, check the mount hardware for tightness, look over the battery connections for corrosion, and confirm the prop nut is secure. After use, disconnect power at the battery and clear weeds or fishing line from the prop area so it does not work its way into the shaft.

Rinse the motor with fresh water to remove grit, and lubricate pivot points periodically as they start to squeak. Avoid aerosol lubricants on the bracket and steering areas, and keep grease off the column sleeves so steering effort stays consistent.
