Vimar Eikon EVO 4-Module Cover Plate, 2+2 Layout, 71 mm Centers, Horizontal/Vertical Mount

(No reviews) Write a Review
$63.00 - $123.00
$59.85 - $130.90
SKU: APL569270
MPN: N/A
UPC: 8007352436169
Adding to cart… The item has been added
Description
Overview

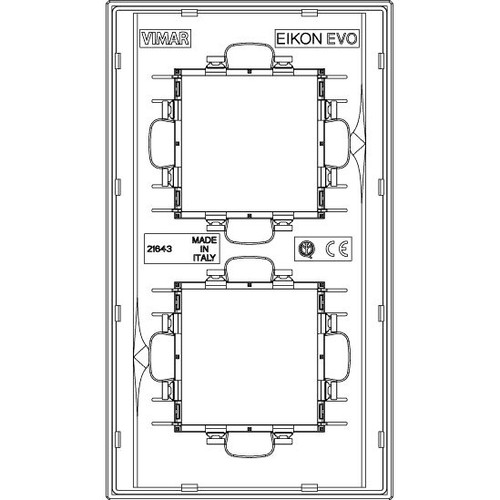

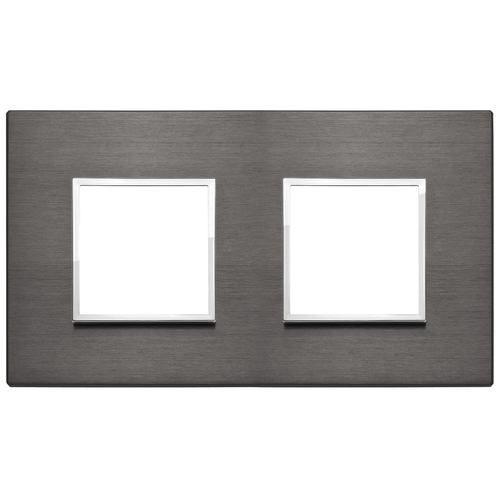

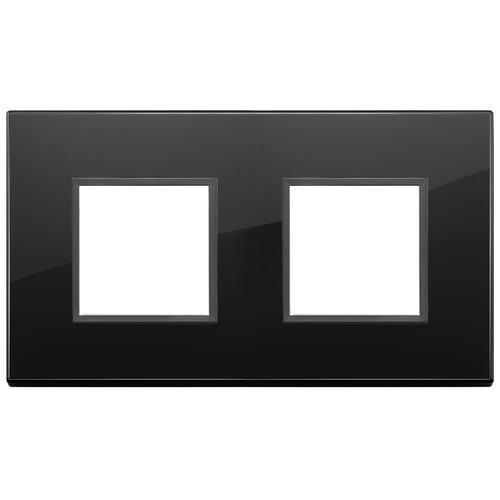

The Vimar Eikon EVO 21643 is a 4-module cover plate for Eikon wiring devices, laid out as 2+2 with 71 mm centre spacing. It finishes a 4-module mounting grid and can be fitted horizontally or vertically, so it works on helm panels, cabin bulkheads, or interior console pods where you want a clean bezel around the mechanisms.

The plate measures 95.4 mm by 166.4 mm and is about 9.6 mm deep. It is rated IP00, so it is not sealed against spray or washdowns and should be installed in protected locations or inside an enclosure when used on board.

Key features
  • 4-module (2+2) format with 71 mm distance between centres for matching Eikon device layouts.
  • Mounts in either orientation to suit horizontal switch runs or vertical stacks.
  • Clamp mounting with an integrated mounting grid for a tidy, aligned finish.
  • Faceplate size 95.4 mm x 166.4 mm; depth about 9.6 mm for low-profile panel trim.
  • Label space/information surface for circuit or function identification.
  • Suitable for built-in installation, wall ducting, and subfloor duct box applications.
  • IP00 protection level: intended for dry, protected interiors rather than exposed cockpit areas.
Variants

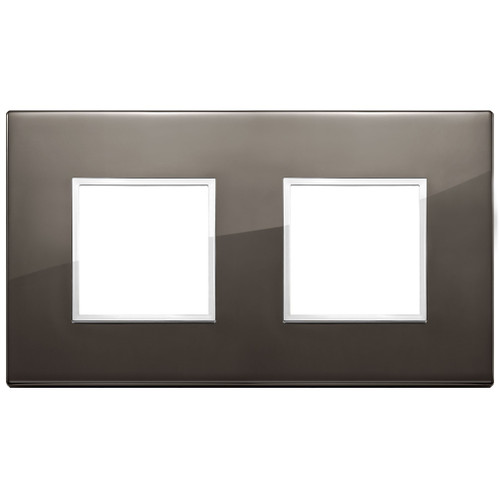

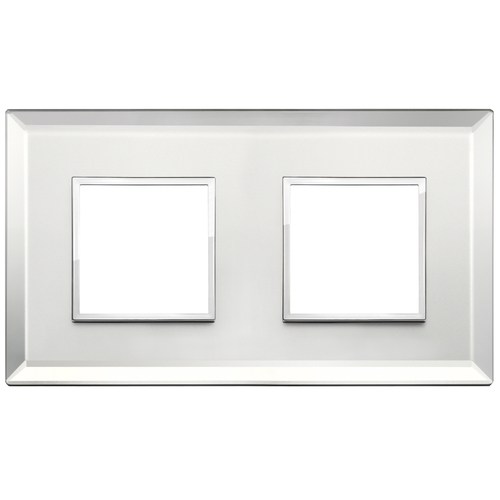

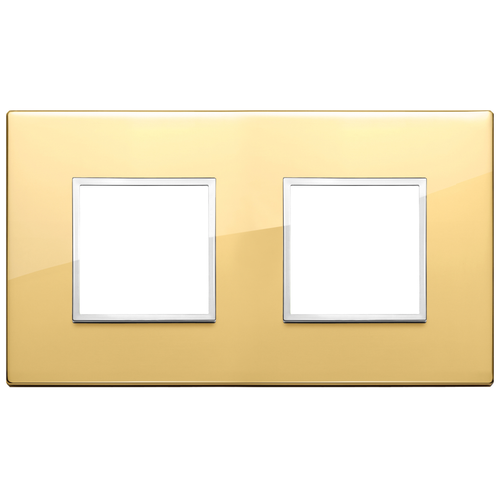

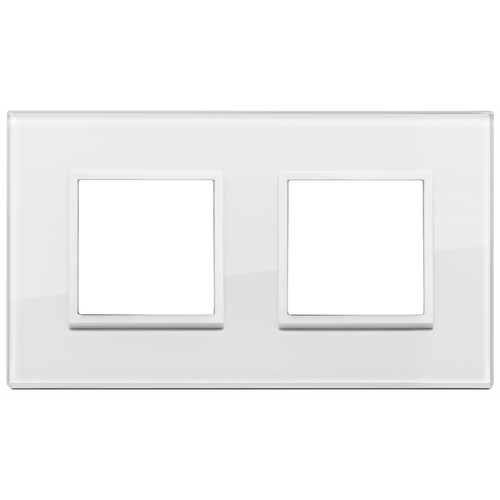

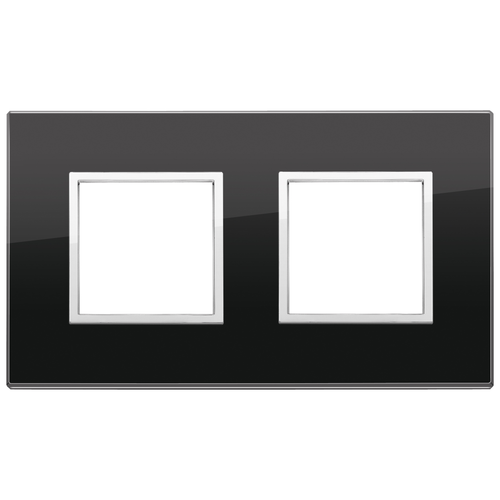

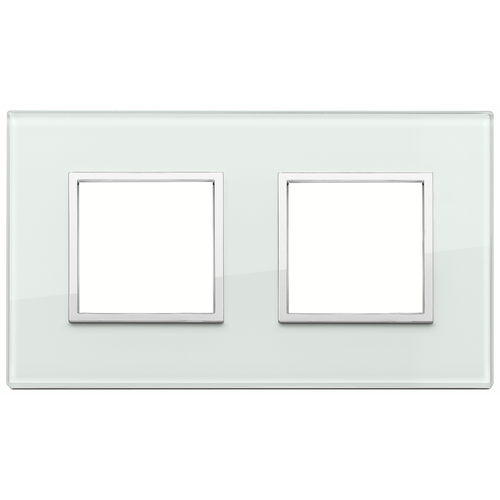

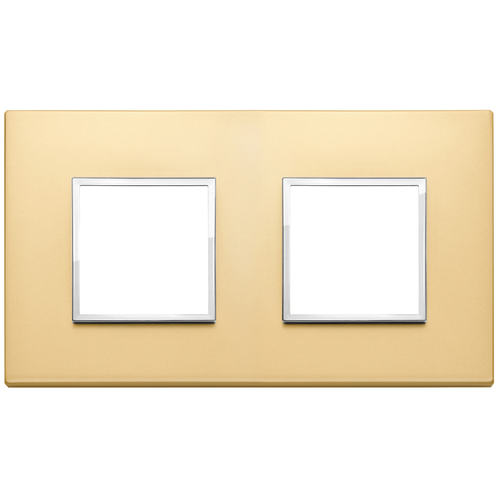

This cover plate is offered in a wide range of finishes so you can match surrounding hardware and interior trim. The options in this range include aluminium looks such as polished aluminium, bronze tones, titanium, and several gold finishes, along with crystal-style looks such as aqua, pearl grey, opal brown, and diamond-style blacks and whites.

Across the range, the module layout, mounting direction, and footprint stay consistent; the visible finish and, in some cases, the face material change. When mixing finishes across a boat, confirm the finish name matches the rest of your Eikon EVO plates and controls.

Compatibility and fit

This plate is meant for Vimar Eikon installations that use the 4-module (2+2) layout. It covers the mounting frame and mechanisms behind it; the electrical rating and switching function come from the inserts you choose, not the cover plate itself.

Before ordering, check that your box or duct system is set up for the 71 mm centre spacing and that you have the matching Eikon mounting frame for a 4-module opening.

Installation and onboard use

Fitment is straightforward once the mechanisms are aligned in the mounting frame: snap or clamp the plate in place and verify that edges sit flat against the panel or bulkhead. On boats, keep it out of direct spray zones and away from routine washdowns unless the whole assembly is protected by a gasketed enclosure.

Care and cleaning

Wipe with a soft cloth and mild soap solution, then rinse and dry to avoid salt residue marks. Avoid abrasive pads and strong solvents, especially on polished surfaces and crystal-style finishes.

Who it suits

This plate makes sense for refits and new builds using Vimar Eikon EVO controls for cabin lighting, accessory switching, or system control panels, where appearance matters and the installation sits in a sheltered interior location.

Video
PDF
Specifications
Condition: New
Finish: Matt Black Finished
Product Type: Wall Cover Plate
Power: No
Product Material: Aluminum
Product Color: Black Sapphire
Product Color: Bronze
Product Color: Dark Bronze
Product Color: Polished Aluminium
Product Color: Polished Gold
Product Color: Gold
Product Color: Satin Gold
Product Color: Brushed Gold
Product Color: Silver
Product Color: Matt Silver
Product Color: Titanium
Product Color: Black
Product Color: White
Finish: Glossy Black Finished
Finish: Glossy Bronze Finished
Finish: Matt Bronze Finished
Finish: Matt Aluminium Finished
Finish: Matt Gold Finished
Finish: Glossy Gold Finished
Finish: Matt Silver Finished
Finish: Glossy Silver Finished
Finish: Glossy White Finished
Finish: Matt Titanium Finished
Product Color: Black Diamond
Product Color: Brushed Dark Bronze
Product Color: Matt Titanium
Product Color: Bronze Mirror
Product Color: Opal Brown
Product Color: Pearl Gray
Product Color: Silver Ice
Product Color: White Diamond
Product Color: Matt Satin Gold
