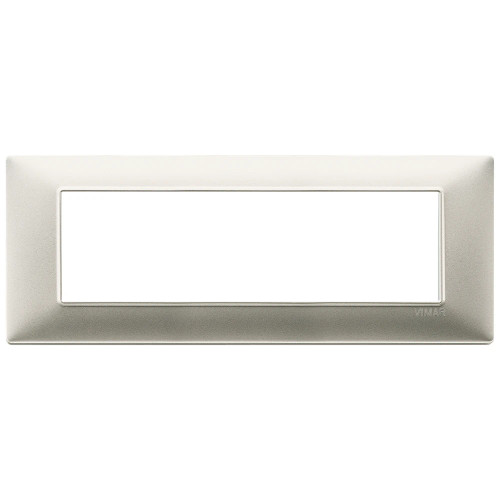

Vimar Plana 7-Module Cover Plate
-
Perfect Fit, Guaranteed
Get the right part every time
-
Expert Support
Our in-house specialists know our products inside and out
-
Enhanced Value & Service
We go beyond the sale with professional and balanced services
-
Wordwide Delivery
Enjoy hassle-free worldwide delivery
Overview
The Vimar Plana Series is a 7-module cover plate that finishes off a row of Plana modular wiring devices with a clean, flush front. It is sized at 206 mm wide by 80 mm high, with a 9 mm depth, so you can confirm it will sit neatly on a bulkhead panel, console face, or interior wall section without crowding nearby trim.
This plate can be installed horizontally or vertically, which is useful when you are working around cabinetry, helm panels, or wiring trunking. The plate itself is IP00, so it is a finishing piece rather than a sealing component.
Key features
- 7-module cover plate format for Vimar Plana modular device layouts
- Mounting direction: horizontal or vertical
- Overall dimensions: 206 mm (W) x 80 mm (H) x 9 mm (D)
- Clamp mounting style for a tidy front once seated on the support
- Halogen-free construction
- IP00 protection rating (the plate does not add water sealing)
- Available across multiple finishes and materials, including technopolymer, metal, and solid wood
Variants

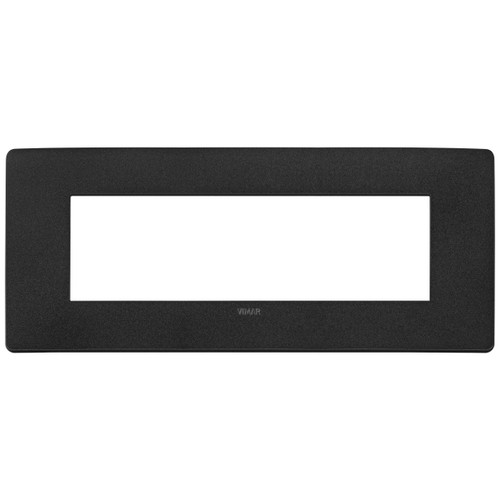

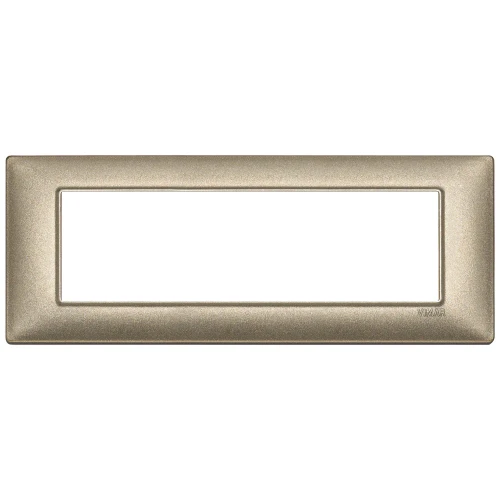

This cover plate is offered in a wide finish range so you can match surrounding switchgear and interior styling without changing the basic 7-module layout.
Across the range, the finish and material vary between technopolymer, metal, and solid wood, including standard colours, Reflex finishes, and Plana Up Design finishes. Some options are offered in an antibacterial white finish.
Compatibility and fit
This plate is intended for Plana installations that use a 7-module arrangement. Before ordering, confirm the module count of the support behind your existing plate and check that the visible opening and surrounding trim allow for a 206 mm by 80 mm face.
On boats, these plates are commonly used for interior lighting and accessory switch groups, outlets, and control points in areas such as cabins, saloons, nav stations, and protected helm consoles where the wiring devices sit behind a finished panel.
Installation and setup

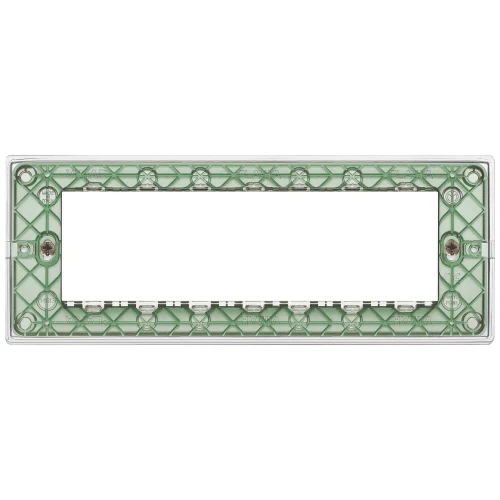

Installation is typically done after the wiring devices and their support are fixed in place. Align the plate with the support and seat it using the clamp mounting points, then check that the edges sit flat with no rocking, which can happen if a panel is uneven or fasteners are over-tightened.
If you are mounting vertically, verify the orientation before final seating so any label area or information surface aligns the way you want it in the finished panel.
Marine placement notes
Because the plate is rated IP00, keep it in dry, protected locations or inside an enclosure that provides the required ingress protection for the space. For heads, galleys, open cockpits, or anywhere that can see washdowns or spray, the plate should be part of a properly protected installation rather than exposed directly.
Wood finish options belong in climate-controlled interiors where moisture swings are limited. Metal and technopolymer finishes are a better match for higher-traffic interior areas where surfaces get wiped down more often.
Maintenance and care
Clean with a soft cloth and mild cleaner suitable for the finish. Avoid abrasive pads that can dull metal finishes or scratch technopolymer surfaces, and keep harsh solvents away from any printed markings or label areas.
