Overview

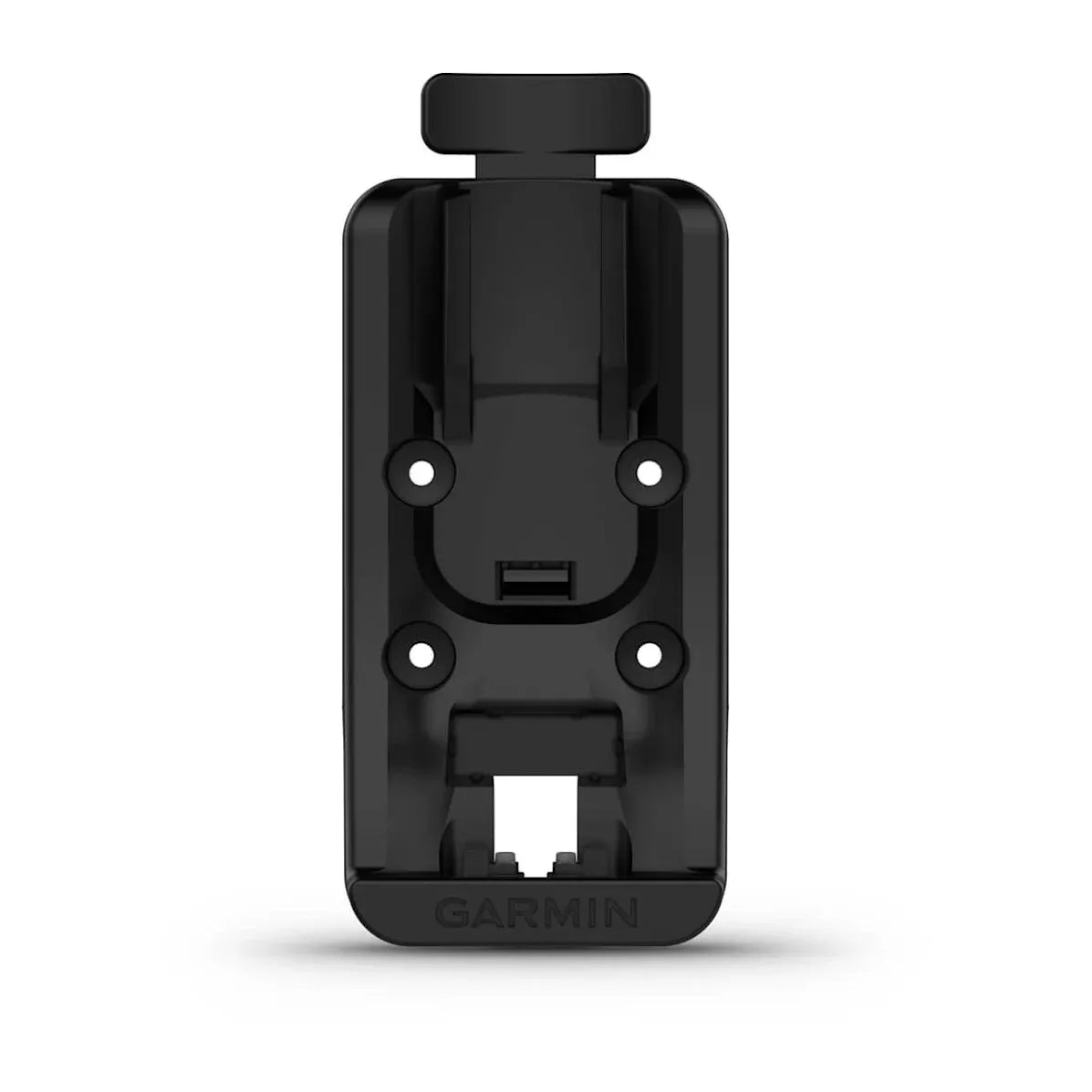

The Garmin 010-12946-00 is a powered cradle mount that holds a GPSMAP 86 Series handheld at a fixed location on the boat while keeping it powered through an integrated USB connection.

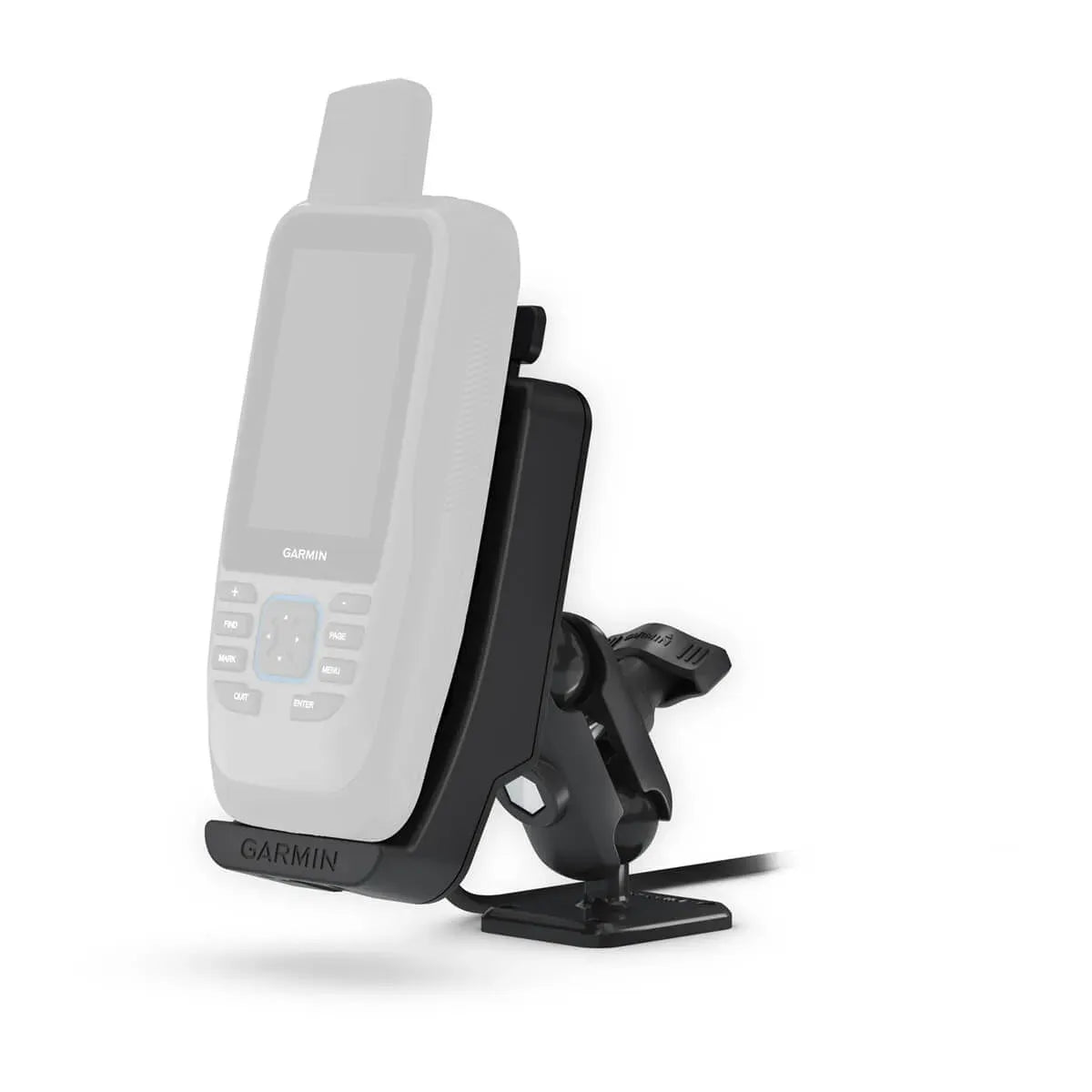

It mounts using the AMPS hole pattern and comes with a 1-inch ball and socket mount, so you can set the viewing angle on a console, bulkhead, or electronics pod where the screen is easy to glance at while underway.

Power is supplied from a 12 V DC circuit using the included flying-lead cable. The quick-release cradle makes it easy to remove the handheld with one hand when you want to take it on deck, in the dinghy, or ashore.

Key features

• Fits GPSMAP 86 Series handhelds including GPSMAP 86s, 86sc, 86i, and 86sci.
• One-handed quick-release cradle for fast removal and re-docking at the helm.
• Integrated USB connection keeps the handheld powered while mounted.
• AMPS mounting pattern for straightforward installation on flat surfaces and common adapter plates.
• Includes a 1-inch ball and socket mount for easy tilt and rotation after installation.
• 12 V flying-lead power cable for hardwiring to a 12 V DC supply on board.

Compatibility and fit

This cradle is specific to the GPSMAP 86 Series form factor, so it is a good match when you want a handheld that lives at the helm most of the time but still comes off the boat for anchoring work, tender runs, or shore navigation. Plan mounting clearance so the unit can slide in and out of the cradle without hitting a wheel, throttle, or enclosure door.

Installation and setup

Fasten the base using the AMPS pattern with marine-appropriate hardware and backing for the surface thickness. The ball and socket joint lets you fine-tune the angle after the base is secured, which helps when the mounting surface is not perfectly aligned with your sightline.

Power and wiring

The cradle provides power to the handheld through its integrated USB connection. Route the included 12 V flying-lead cable to your 12 V DC distribution point, and leave enough service loop at the mount so you can adjust the angle without pulling on the wiring.

On-board use notes

For open boats and exposed consoles, place the mount where it is protected from direct hose spray and where the release latch can be reached without leaning. A simple drip loop in the power lead helps keep water from tracking along the cable toward the cradle.

What's included

• GPSMAP 86 Series powered mount cradle
• Integrated cable with USB connection
• 12 V flying-lead power cable
• 1-inch ball and socket mount
