Overview

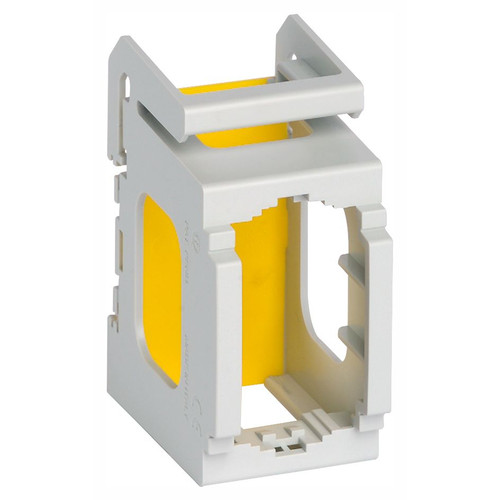

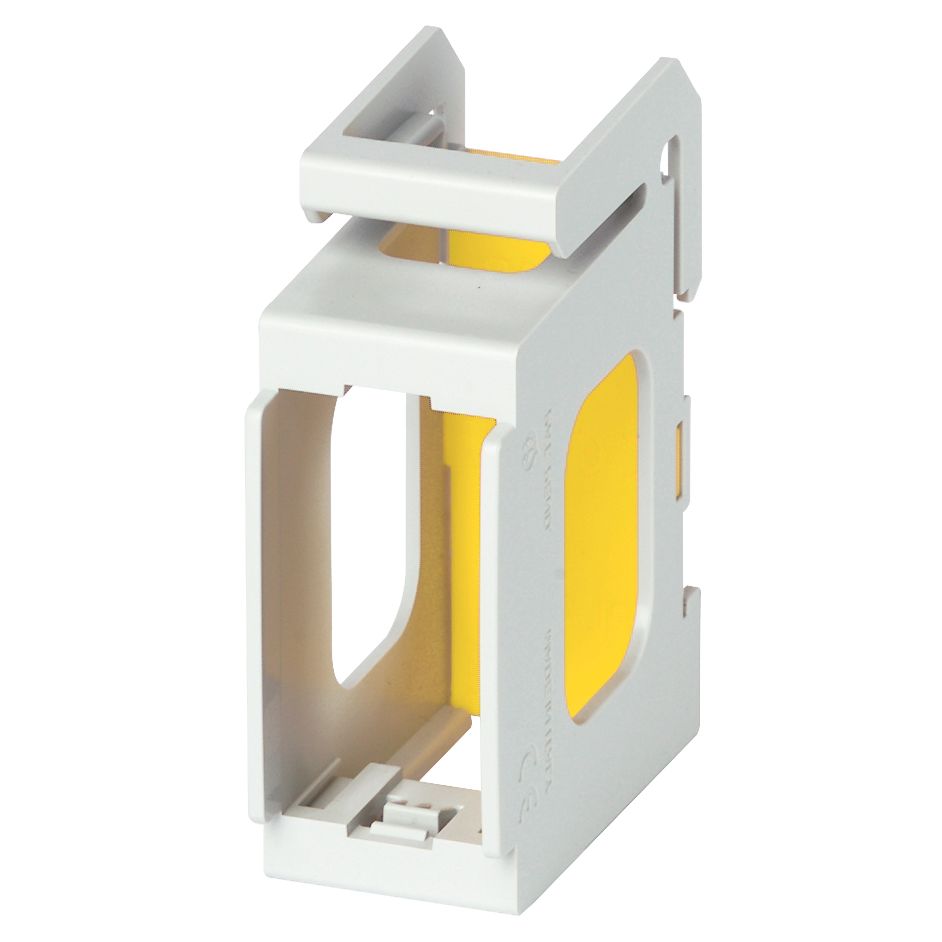

The Vimar VMV51921 is a 1-module mounting frame that fastens to a 35 mm TH35 DIN rail (DIN 60715) so you can install Vimar Eikon, Arké, or Plana devices inside a switchboard or control enclosure.

It occupies 1.5 standard DIN modules (17.5 mm per module), comes in RAL 7035 grey, and includes an isolating lining that adds a protective barrier between the mounted device and surrounding metalwork in a panel.

Key features

• Fits 35 mm top-hat DIN rail (TH35) layouts used in distribution boards and control enclosures
• Mounting support for one Vimar Eikon, Arké, or Plana device module on a DIN rail
• Occupies 1.5 DIN modules (17.5 mm per module), useful for planning rail space in compact panels
• RAL 7035 grey finish that blends with common switchboard components
• Supplied with an isolating lining (protection diaphragm) for a cleaner, more separated install in metal enclosures
• Straight DIN-rail adapter profile with a plastic body, so there is no rust to deal with inside the panel

Compatibility and fit

This frame is for DIN-rail mounting inside an enclosure and is intended for Vimar devices in the Eikon, Arké, and Plana ranges. Confirm the series of the device you plan to mount, and allow for the 1.5-module footprint when laying out breakers, terminals, and wiring duct on the rail.

It uses the standard 35 mm top-hat rail format, so it matches the rails found in many AC and DC distribution panels and small control boxes on board.

Installation and setup

Install the frame on the DIN rail inside the panel, then fit the chosen device module into the support as required by that series. Leave clearance for wire bends and for service access, since cramped enclosures can make later troubleshooting harder than it needs to be.

On boats, it is typically mounted behind a panel door or inside a sealed electrical box to keep salt deposits and spray away from the electrical system.

Use on board

This is a practical part for building a tidy DIN-rail section at a nav station, in a machinery-space control box, or inside a DC distribution locker where you want a single Eikon, Arké, or Plana module to sit alongside breakers and other DIN components.

It suits installers who are standardizing on Vimar device modules and need a compact way to integrate one function into a DIN-rail switchboard layout without giving up more rail space than necessary.
