Overview

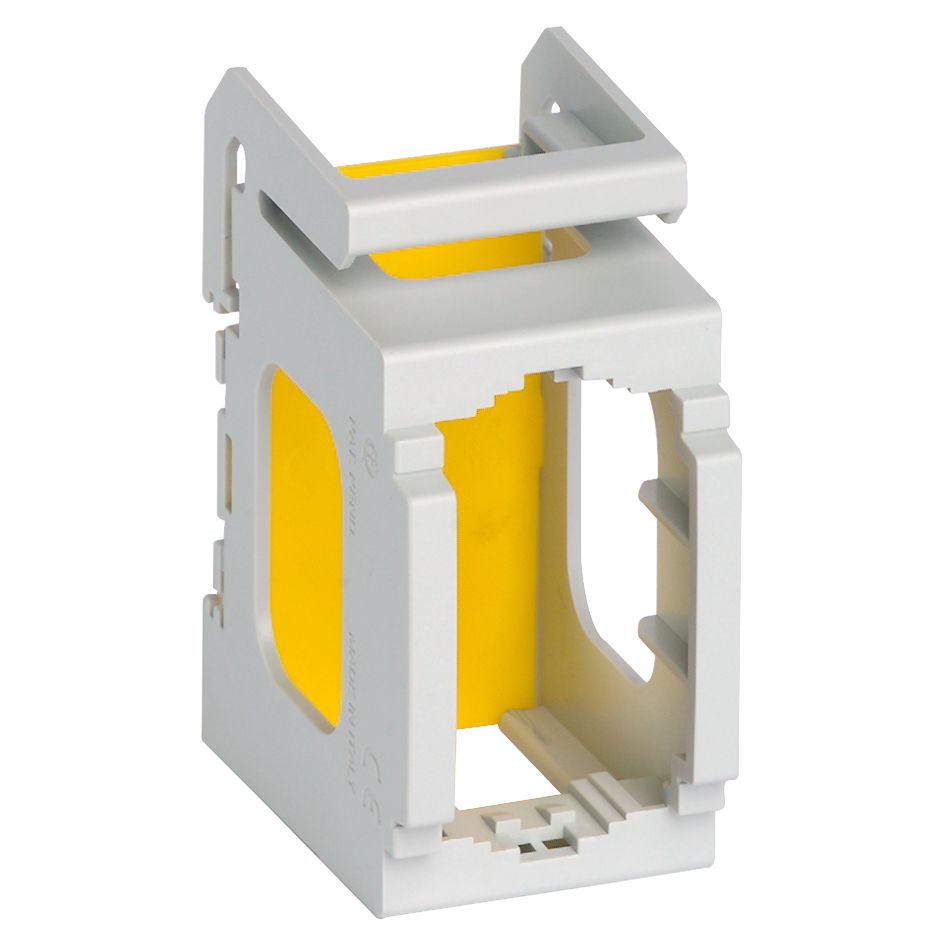

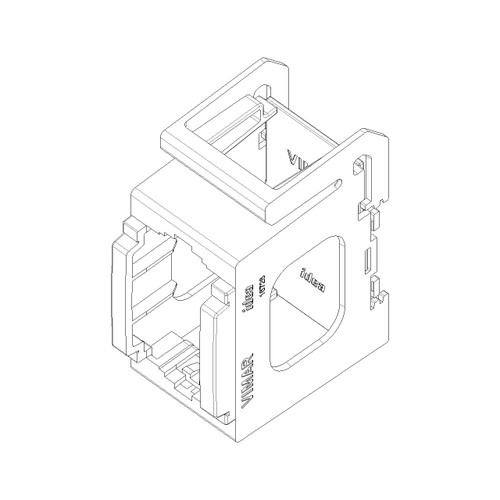

The Vimar VM16726 is a 1-module mounting frame for fitting a single Vimar Idea insert onto a 35 mm DIN rail (EN 60715 TH35). It occupies 2 DIN modules (2 x 17.5 mm) and comes in RAL 7035 grey.

The module insert mounts from the back of the frame, and the frame can be oriented either horizontally or vertically depending on how your switchboard is laid out.

On board, this is the kind of small hardware that keeps a DIN-rail panel clean and serviceable when you are mixing modular switching devices into a DC distribution area or a control cabinet.

Key features

• Fits standard 35 mm DIN rail (EN 60715 TH35)
• Holds one 1-module insert (Vimar Idea module format)
• Takes up 2 x 17.5 mm DIN modules of rail width
• Back-side mounting for the module insert
• Installs in horizontal or vertical orientation
• Thermoplastic frame with RAL 7035 grey finish
• No built-in installation box and no screws included

Compatibility and fit

This frame is intended for DIN-rail switchboards and control units where components are arranged on a 35 mm top-hat rail. It is not a flush-mount frame and it is not meant for wall-duct runs, floor box installs, or round 60 mm junction boxes.

Installation and setup

Snap the frame onto the DIN rail, then insert the 1-module device from the back side of the frame. Leave rail space for 2 DIN modules (2 x 17.5 mm) and allow clearance behind the rail for wiring and terminal access on the installed device.

Since the frame is an open DIN-rail accessory, it should live inside a protected enclosure or switchboard where it stays out of spray and washdowns.

Use cases on board

A practical fit for boaters building a compact DIN-rail subpanel with Vimar Idea modules for cabin circuits, accessory switching at the helm, or a neat control row inside an electrical locker.
