Overview

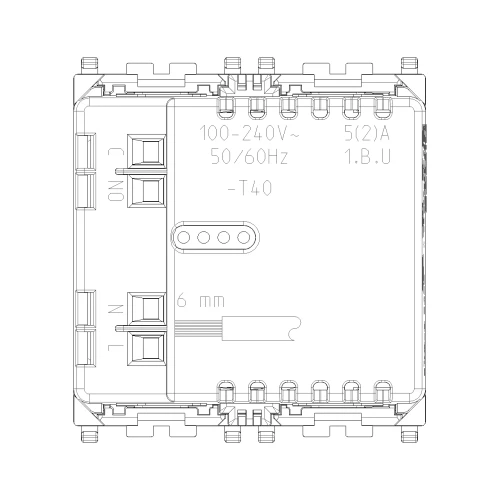

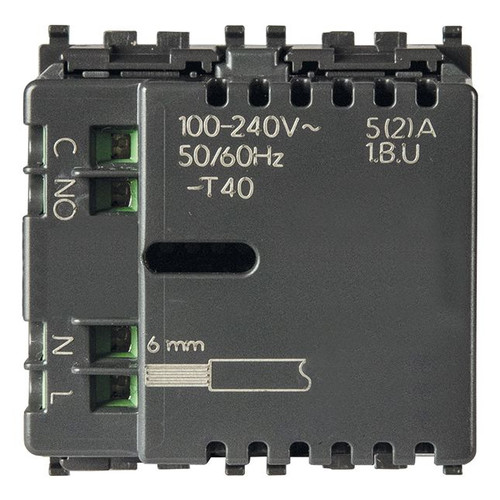

This Vimar dial thermostat is a 2-module flush-mount control for heating and cooling systems that work in ON/OFF mode. It runs on 100-240 V AC, 50/60 Hz, uses a relay output rated 5(2) A at 240 V~, and includes white LED backlighting with adjustable brightness. The body measures 49.00 x 44.80 x 41.50 mm, so it fits where panel space is limited.

For boat installations, this type of thermostat makes the most sense in dry interior areas where the climate system is tied into the vessel's AC side rather than a 12V or 24V DC control circuit. It is completed with Vimar Eikon, Arké, or Plana cover plates, and it can also be installed in Idea systems with mounting frame 16723.

Key features

• 100-240 V AC, 50/60 Hz power supply for HVAC control points on the vessel's AC side
• ON/OFF control for both heating and cooling with relay output rated 5(2) A at 240 V~
• 2-module flush-mount format with a compact 49.00 x 44.80 x 41.50 mm body

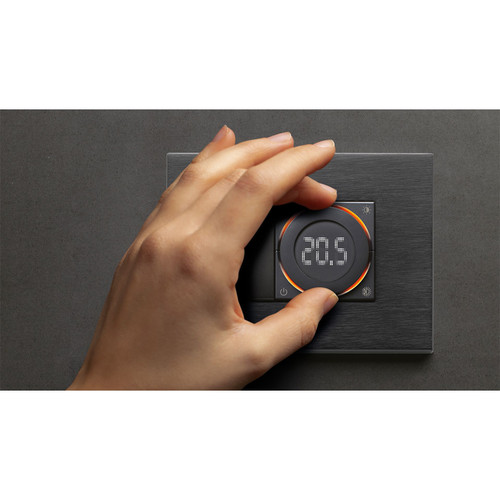

• White LED backlighting with adjustable brightness for easier viewing in low light
• External resistance sensor support with parallel thermal feedback
• Compatible with Eikon, Arké, and Plana cover plates, with Idea installation possible using frame 16723

Variants

This thermostat is offered in four finish options within the same 2-module format.

Across the listed versions, the finish color changes while the core function stays the same: 100-240 V AC supply, ON/OFF heating and cooling control, relay output, and the same cover plate compatibility.

• 02970 / Grey. A darker finish that suits switch panels and interior trim where lower contrast is preferred.
• 02970.B / White. A lighter finish that blends more easily with white or bright cabin interiors.
• 02970.M / Metal. A metallic look that works well where other control hardware has a brushed or metal-toned appearance.
• 02970.N / Silver. A silver-toned finish for installations that call for a lighter metallic style on the panel.

Compatibility and fit

This unit fits Vimar modular installations that use a 2-module device layout. It is intended for flush mounting and pairs with Eikon, Arké, and Plana cover plates. Where the vessel already uses the Idea system, mounting frame 16723 is required.

Its IP20 rating matters on board. This is a thermostat for protected interior spaces such as cabins, enclosed salons, passageways, and utility areas with climate control access. It is not the right choice for open cockpits, exterior helm positions, or any mounting point exposed to spray, washdowns, or constant condensation.

Electrical and system integration

The control logic is straightforward, which helps when the boat's heating or air conditioning system calls for a simple wall thermostat rather than a networked controller. It supports one heater output and one cooler output, reads temperature, and works with an external resistance sensor.

This is a good match for boats using self-contained air conditioning units or zone-based AC systems that switch in ON/OFF mode from an interior wall control. It is less suited to low-voltage DC thermostat circuits or installations that expect digital communication over a marine network.
