Vimar Plana 8-Module (2+2+2+2) Cover Plate, 71mm Center Distance, 293 x 80mm, Halogen-Free Technopolymer, Clamp Mounting, IP00
Overview

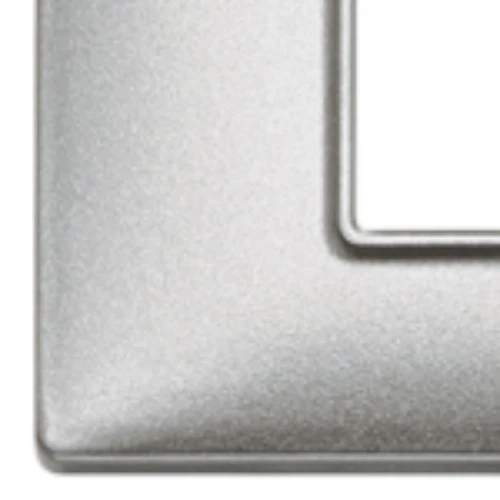

The Vimar Plana Series is an 8-module cover plate with a 2+2+2+2 layout and a 71 mm distance between centers.
It gives a clean finish around a row of Vimar modular devices on a bulkhead or interior panel, so banks of switches, outlets, and controls look like one tidy assembly. The plate measures 293 mm wide by 80 mm high and sits about 9 mm deep, which helps when you are planning clearances around cabinetry and liners.
It is made from halogen-free thermoplastic (technopolymer) and uses clamp mounting with an integrated mounting grid and a label area for identification. With an IP00 rating, it is intended for dry interior locations rather than areas that see spray, washdowns, or dripping gear.
Key features
- 8-module cover plate in a 2+2+2+2 arrangement with a 71 mm center distance
- Overall size: 293 mm width, 80 mm height, 9 mm depth
- Mounting direction supports horizontal or vertical installation
- Clamp mounting with a mounting grid for consistent alignment
- Label space for circuit or device identification
- Halogen-free technopolymer construction
- IP00 protection rating for dry, protected interior panels
Variants
This cover plate is offered in a wide color range, including solid colors, metallic looks, and the Reflex color family. One option is available in white with antibacterial treatment.
Across the range, the module layout and physical footprint stay consistent, so the selection mainly comes down to the finish that matches your boat’s interior and how visible the plate will be in the space.
Compatibility and fit
This plate is meant for Vimar Plana installations that use the 71 mm center spacing and an 8-module (2+2+2+2) layout. Before ordering, confirm your device arrangement matches the 8-module format and that you have enough flat mounting area for the full 293 mm by 80 mm plate size.
For marine layouts, this is commonly used where multiple functions are grouped in one place, such as lighting banks, service switches, and convenience outlets, as long as the mounting position is protected from direct water exposure.
Installation and setup
Plan cable routes and device positions first, then de-energize the circuit before working on the panel. The plate can be oriented horizontally or vertically, so you can match the direction of your module row and the available bulkhead space.
Seat the plate evenly so the edges sit flush against the surface, and keep a little access around the perimeter for future servicing. In boats that see vibration, a careful fit helps prevent rubbing marks along the edges over time.
Use on board
This format works well in cabins, salons, nav stations, and protected helm or galley panels where you want a single finished plate over a longer run of controls. It is a practical match for refits where you are standardizing on the Vimar Plana system and want consistent spacing and a uniform look across multiple switch groups.
Care and cleaning
Clean with a soft damp cloth and mild soap, then dry fully. Avoid abrasive pads and strong solvents that can haze the surface. If the area sees salty air, an occasional wipe-down helps keep the finish looking even.
