Attwood Marine PowerGuard Battery Box, Vented, Polypropylene, ABYC E-10, USCG 183.420

Overview

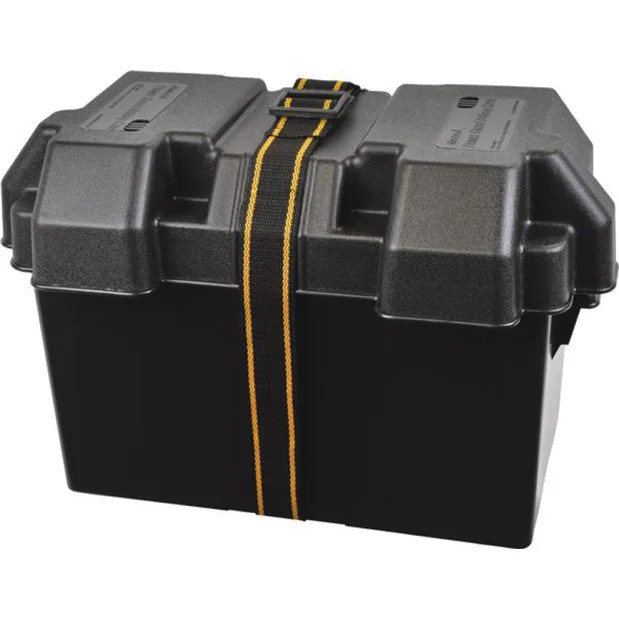

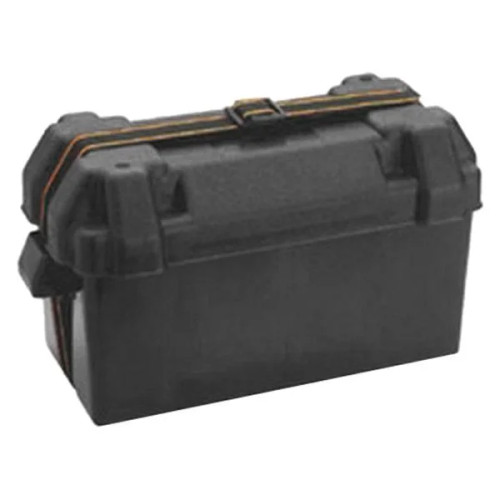

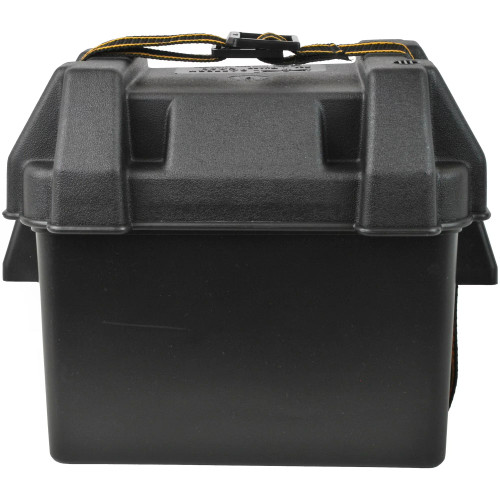

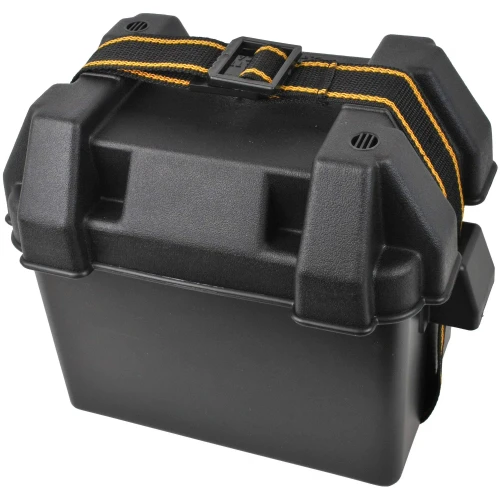

The Attwood Marine PowerGuard is a vented battery box range for keeping a marine battery covered, contained, and held down in small boats, fishing boats, pontoons, personal watercraft, and other onboard or dockside electrical setups. The range covers U1, 27/27F/27M, and 29/31 battery series, so the main buying decision is matching the box to the battery group used on the vessel.

Each box uses black polypropylene construction for acid resistance and has ventilation for battery gas management. The PowerGuard boxes meet ABYC Standard E-10 and U.S. Coast Guard Specification 183.420 as an OEM-installed battery hold-down system, and the hold-down straps are rated to resist 350 lb of force.

These boxes are made for real marine handling, with rolled-edge handles, cable openings for battery leads, and drop testing across a temperature range from -20°F to +120°F. They are a practical fit for battery locations where the battery needs protection from contact, movement, and routine exposure around wet gear, bilge moisture, and washdown areas.

Key features

• Vented battery box construction helps manage battery gases while keeping the battery covered and separated from loose gear.
• Black polypropylene body resists battery acid, which matters around lead-acid batteries in enclosed lockers and utility spaces.
• Meets ABYC Standard E-10 and U.S. Coast Guard Specification 183.420 for use as an OEM-installed battery hold-down system.
• Hold-down straps resist 350 lb of force, helping keep the battery in place when the boat is trailered, turns hard, or runs through chop.
• Four cable openings allow battery leads to exit the box without forcing the lid out of position.
• Large handles with rolled edges make the box easier to lift and position during battery service.
• Drop tested from -20°F to +120°F for use across seasonal storage, hot compartments, and cold-weather handling.

Variants

This PowerGuard range is offered in three configurations based on battery series. The battery series is the key fit point, so the box should be matched to the installed battery before ordering.

The variants differ by battery group fit and box size. Across the range, the boxes are vented, black, made from polypropylene, include a hold-down strap, and meet ABYC E-10 and U.S. Coast Guard Specification 183.420.

• 9082-1 fits Battery Series U1. This smaller configuration is suited to compact batteries often used in personal watercraft, small auxiliary systems, and other tight battery locations where a full-size Group 27 or Group 31 box is not needed.
• 9067-1 fits Battery Series 27/27F/27M. This mid-size option matches common marine starting and deep-cycle battery groups used on many runabouts, fishing boats, and pontoons.
• 9084-1 fits Battery Series 29/31. This larger configuration accommodates Group 29 and Group 31 batteries, often used where higher battery capacity is required for trolling motors, house loads, or extended time away from shore power.

Compatibility and fit

Battery group size is the most important fit check. A U1 battery should be paired with the U1 box, Group 27, 27F, or 27M batteries should be paired with the 27-series box, and Group 29 or 31 batteries should be paired with the 29/31 box. The lid, cable exits, and hold-down strap all depend on the battery sitting properly inside the box.

Before installation, confirm the battery footprint, terminal height, and cable routing in the actual mounting location. The box needs enough clearance for the lid, strap, cable bend radius, and hand access for future battery inspection or replacement.

Installation and use on board

Mount the box on a flat, stable surface where the battery weight is fully supported and the strap can be properly secured. Good locations include battery trays, lazarette compartments, console interiors, and utility lockers that remain accessible for charging and maintenance.

Route positive and negative cables through the molded openings without sharp bends or lid interference. After the battery is installed, check that the lid sits correctly and that the strap holds the box firmly before the boat is trailered or run in rough water.

Maintenance and care

Inspect the box during battery checks for acid residue, loose hardware, cracked plastic, or a strap that no longer holds tension. Keeping the battery compartment clean and dry helps protect nearby wiring and makes it easier to spot corrosion at the terminals.

This range is a good match for boat owners replacing a worn battery box or setting up a secure battery location for a small craft, tender, fishing boat, or utility circuit where fit by battery group is the deciding factor.

What’s included

• PowerGuard vented battery box with lid
• Hold-down strap
• Mounting hardware
