Overview

This Vimar IP40 surface mounting box is a 2-module enclosure for Idea modules or 2 8000 special modules, with versions in ivory or grey. It is made from plastic, uses full insulating materials, and includes 2 adaptors 08491 for 8000 standard modules.

On a boat, this type of enclosure works well where you need a clean surface-mounted switch point instead of cutting a recess into a bulkhead or panel. IP40 makes it a better fit for interior areas that stay protected, such as cabins, nav stations, console interiors, and service spaces behind doors or panels, rather than exposed deck locations.

Key features

• 2-module surface enclosure for Vimar Idea modules or 2 Vimar 8000 special modules
• Supplied with 2 adaptors 08491 for installations using 8000 standard modules
• IP40 enclosure rating for interior installations where direct spray and washdown are not expected
• Plastic housing with full insulating materials

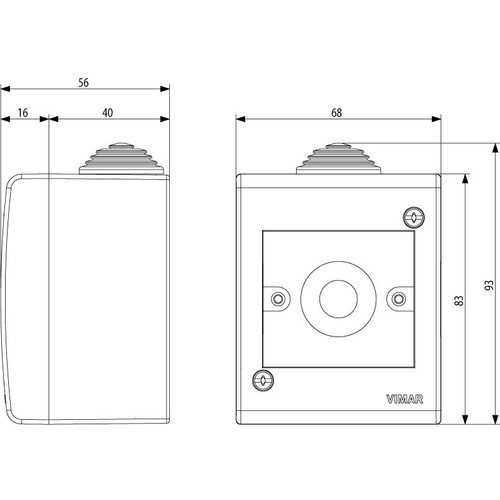

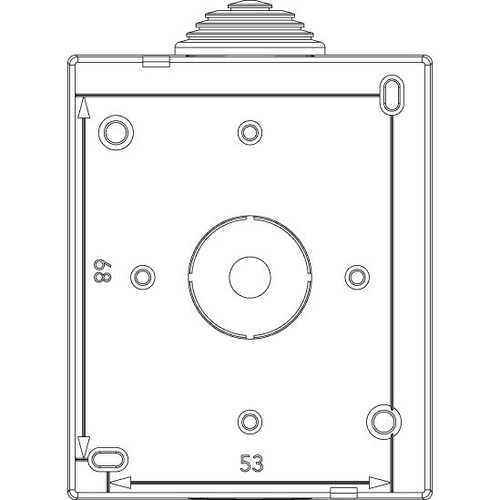

• Compact enclosure format, approximately 68 x 93 x 56 mm

Variants

This product is offered in more than one colour configuration.

The listed versions differ by colour. The enclosure format stays at 2 modules with IP40 protection across the range.

• VM13023.A, Color Ivory. This version suits lighter switch trims and interiors where a softer finish blends in more easily.
• VM13023, Color Grey. This version has a more neutral technical look that sits well on darker panels and utility spaces.

Compatibility and fit

Before ordering, check the module family already installed on the vessel. This box accepts 2 Idea modules directly, or 2 8000 special modules. Where the installation uses 8000 standard modules, the supplied 08491 adaptors are part of the fit.

That makes it useful for refit work as well as small repairs, especially on boats where older switch locations may already use Vimar components from the Idea or 8000 range.

Installation and onboard use

Because it is a surface enclosure, it is useful where there is not enough depth for a flush box behind the panel. That can simplify work on finished joinery, fiberglass liners, and retrofit panels where access behind the mounting surface is limited.

This is a sensible choice for owners, electricians, and yards who need a tidy 2-module box in a protected onboard location and want to stay within the Vimar Idea or 8000 ecosystem.
